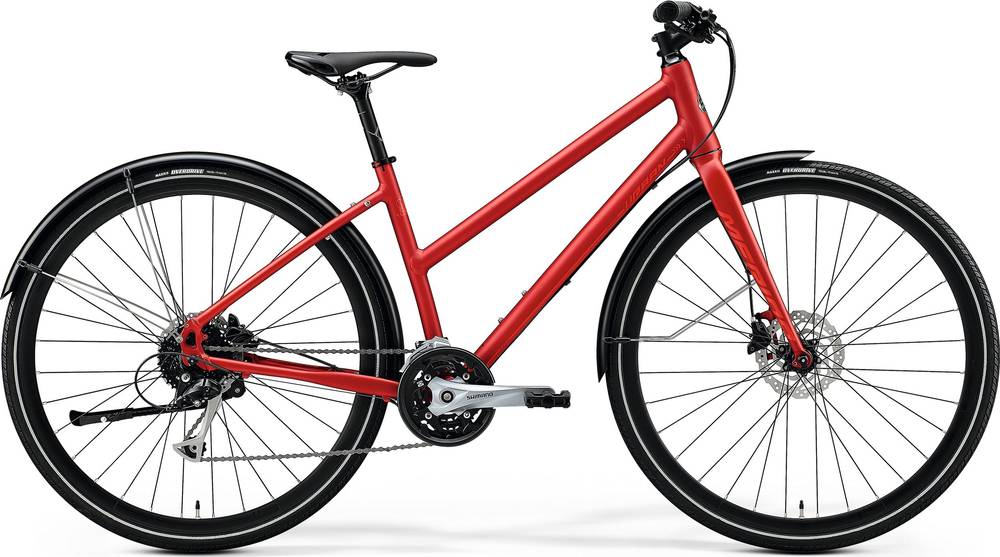

Merida CROSSWAY URBAN L 100 2020
2020 Urban
Estimate price |
937$
Weight | 11.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, Sora -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS L, material: aluminium, 700C wheelsize, 100x15/135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
CROSSWAY URBAN LITE, Tapered, material: aluminium
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M3000
Shift Levers
Shimano Altus
Cassette
Shimano HG200, 11-34 teeth, 9 speed
Crank
Shimano M3000, 40-30-22 teeth, 170 mm-XXS/XS, 175 mm-S/XL
Bottom Bracket
FSA TH-7420ST Cartridge Bearing
Chain
KMC M99
Wheels
Front Hub
Joytech QR-216
Rear Hub
Joytech QR-216
Rims
MERIDA URBAN, 16mm inner width, 27mm height, material: aluminium
Tires
Maxxis Overdrive
Brakes
Brakes
Shimano MT-200
Brake Levers
Shimano MT-200
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise
Headset
MERIDA M2341 neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.44 mm | 1.43 mm |
| Front Center | 630 mm | 640 mm | 645 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm |
| Stack | 581 mm | 586 mm | 592 mm |
| Reach | 398 mm | 406 mm | 414 mm |
| Top Tube Length | 571 mm | 581 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 165 mm | 170 mm | 175 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1067 mm | 1077 mm | 1082 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 584 mm | 586 mm | 585 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
CROSSWAY URBAN L 100 is a Merida Crossway model. Merida launched 210 bikes of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2020, by clicking here.
Model range prices
Merida CROSSWAY 10-V 2020 is the most affordable bike of this model and has a price of 487$. On the other hand, Merida CROSSWAY URBAN 300 2020, is the most expensive and costs 1010$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 851$. Comparing this to the average Hybrid bike price, we see that the price is 51.42% more expensive.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida CROSSWAY URBAN L 100 it’s weighing 11.95 kg (26.35 lbs). At this weight, is much lighter than average. To sum up, it’s 15.9% lighter than the average weight of Hybrid bikes.
CROSSWAY URBAN L 100 components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on CROSSWAY URBAN L 100 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
