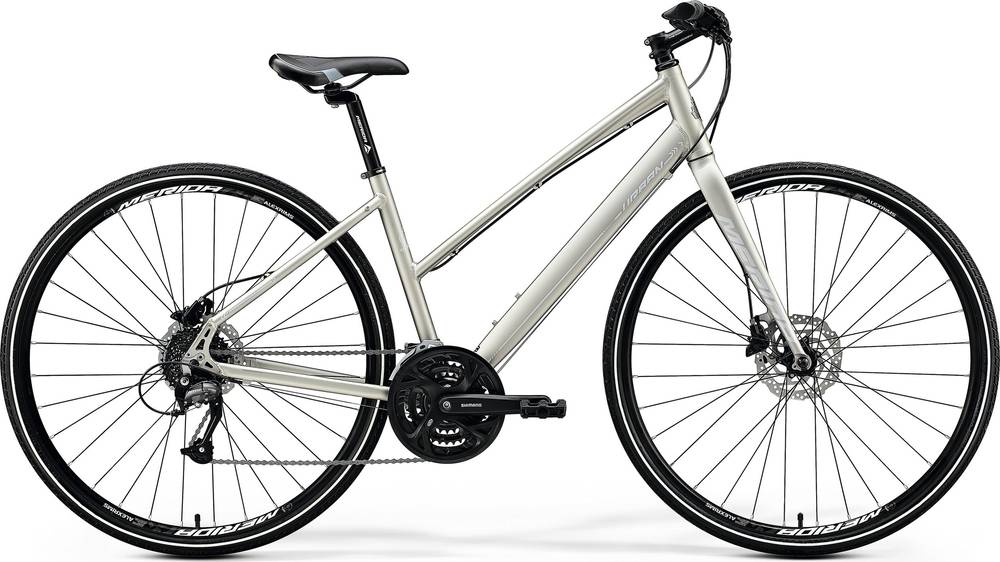

Merida CROSSWAY URBAN L 40 2020
2020 Urban
Estimate price |
776$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Altus, Shimano -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
URBAN SPEED L, material: aluminium, 700C wheelsize, 100x15/135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
MERIDA URBAN, material: aluminium
Drivetrain
Rear Derailleur
Shimano RD-M370
Front Derailleur
Shimano FD-M370
Shift Levers
Shimano ST-EF505
Cassette
Shimano CS-HG200, 11-32 teeth, 9 speed
Crank
Shimano FC-M371, 48-36-26 teeth, 170 mm-XS/SM, 175 mm-ML/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
KMC M99
Wheels
Rims
MERIDA CC, 17mm inner width, material: aluminium
Tires
MERIDA K1024
Brakes
Brakes
Shimano ST-EF505
Brake Levers
Shimano ST-EF505
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA TH888/NO.10
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.43 mm |
| Front Center | 630 mm | 631 mm | 640 mm |
| Rake | 45 mm | 46 mm | 45 mm |
| Trail | 73 mm | 72 mm | 73 mm |
| Stack | 587 mm | 592 mm | 597 mm |
| Reach | 410 mm | 409 mm | 417 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 165 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1078 mm | 1079 mm | 1088 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 595 mm | 595 mm | 596 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
CROSSWAY URBAN L 40 is a Merida Crossway model. There are 210 bikes that carry this model name. Take a sneak peek at all Merida Crossway bikes models from 2020, by clicking here.
Model range prices
Merida CROSSWAY 10-V 2020 is the cheapest bike model and costs 487$. Merida CROSSWAY URBAN 300 2020 is the most expensive one and costs 1010$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 706$. In conclusion, this bike price is 25.62% higher than the price of the average Hybrid bike.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 12.4 kg (27.34 lbs), Merida bike is considerably lighter than average. In short, the average Hybrid bike weight is 11.69% higher than this one.
CROSSWAY URBAN L 40 components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The CROSSWAY URBAN L 40 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY URBAN L 40 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
