Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
CC Carbon disc 15
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano XT double
Shift Levers
Shimano XT-i
Cassette
Shimano CS-HG500-10 11-34
Crank
Shimano XT 38-24 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Centerlock-15 fix Track / Centerlock cassette Track
Rear Hub
Centerlock-15 fix Track / Centerlock cassette Track
Rims
MERIDA comp Pro D
Spokes
Black stainless
Tires
Maxxis Overdrive 35 kevlar ref
Brakes
Brakes
Shimano M506 160 cen
Cockpit
Handlebar
MERIDA pro OS 660 R12
Headset
FSA No.57/No.61BP
Seat
Saddle
Crossway comfort pro
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 625 mm | 625 mm | 625 mm | 639 mm | 640 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 45 mm | 45 mm | 49 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 65 mm | 66 mm | 66 mm | 66 mm | 63 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1073 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 688 mm | 713 mm | 729 mm | 743 mm | 776 mm | 801 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

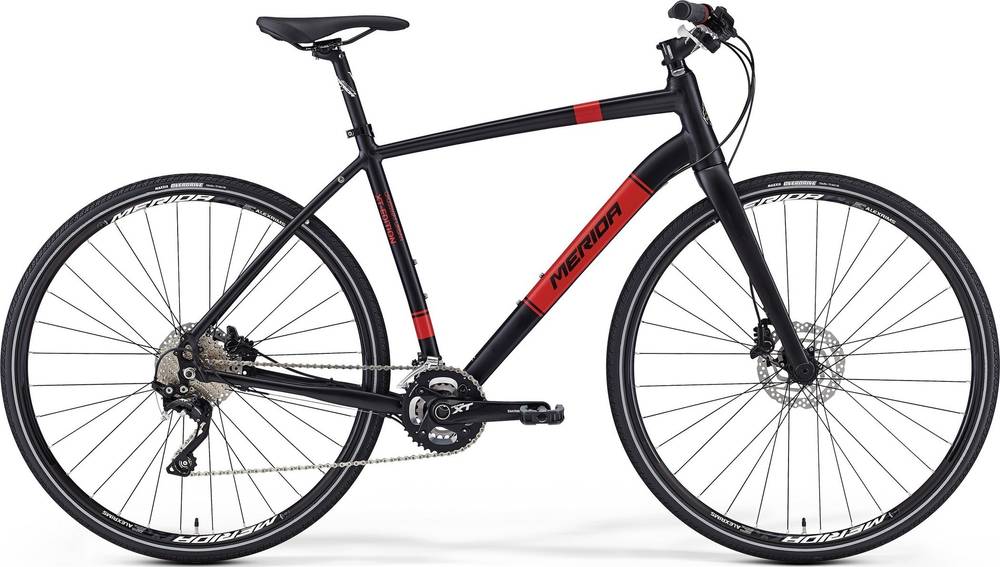

CROSSWAY URBAN XT-EDITION is a Merida Crossway model. Merida launched 210 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CROSSWAY URBAN XT-EDITION weighs 10.6 kg (23.37 lbs) and is much lighter than the average. To sum up, it’s 30.66% lighter than the average weight of Hybrid bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the CROSSWAY URBAN XT-EDITION bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY URBAN XT-EDITION has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
