Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
Full carbon tapered fork with 15mm bolt through axle
Drivetrain
Rear Derailleur
Shimano XT shadow
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 20 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
Shimano XT 38-26 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rear Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35c with kevlar puncture protection and reflective strip
Brakes
Brakes
Shimano M500 hydraulic disc, 160mm rotors
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2339
Seat
Saddle
Crossway comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 625 mm | 625 mm | 625 mm | 635 mm | 640 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 69 mm | 66 mm | 66 mm | 66 mm | 63 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1069 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 690 mm | 714 mm | 730 mm | 746 mm | 776 mm | 800 mm | 826 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

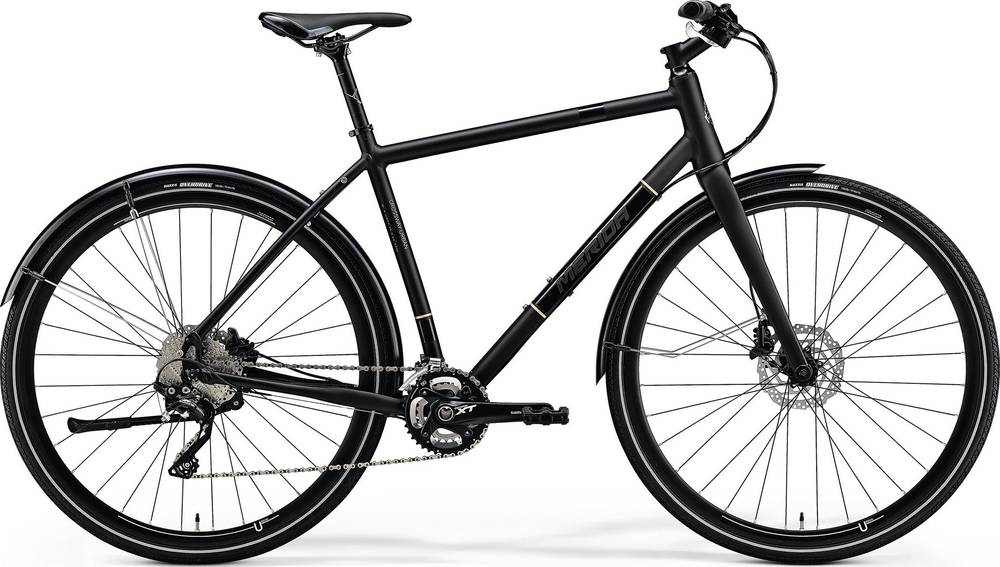

CROSSWAY URBAN XT-EDITION is a Merida Crossway model. There are 210 bikes that carry this model name. Take a sneak peek at all Merida Crossway bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CROSSWAY URBAN XT-EDITION weighs 12.12 kg (26.72 lbs) and is considerably lighter than the average. In other words, this model is 14.27% lighter than the average Hybrid bike.
CROSSWAY URBAN XT-EDITION components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Merida CROSSWAY URBAN XT-EDITION 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY URBAN XT-EDITION has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
