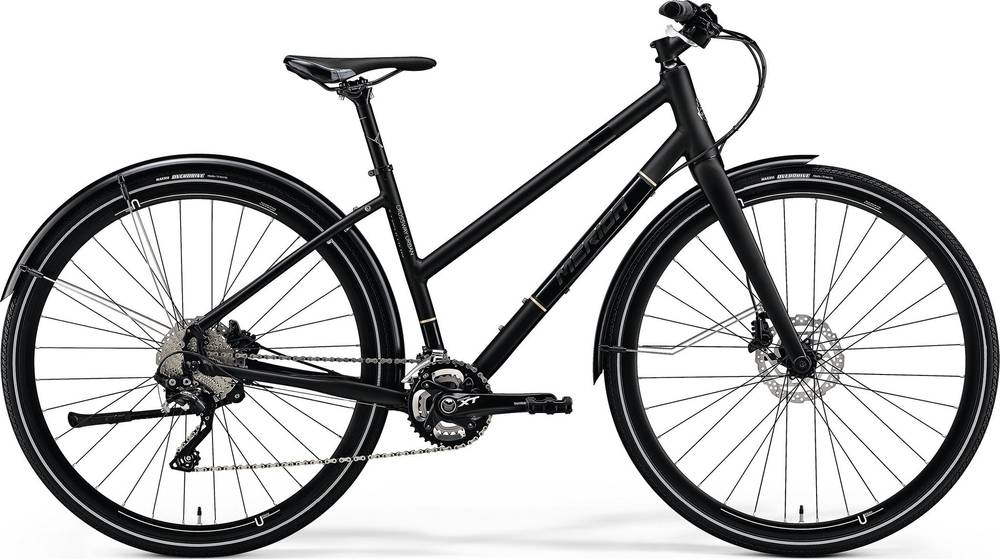

Merida CROSSWAY URBAN XT-EDITION LADY 2018
2018 Urban
Weight | 11.59 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset XT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS LADY
Suspension Fork
Full carbon tapered fork with 15mm bolt through axle
Drivetrain
Rear Derailleur
Shimano XT shadow
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 20 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
Shimano XT 38-26 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rear Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35c with kevlar puncture protection and reflective strip
Brakes
Brakes
Shimano M500 hydraulic disc, 160mm rotors
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2339
Seat
Saddle
Crossway comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.43 mm | 1.42 mm | 1.39 mm |
| Front Center | 630 mm | 630 mm | 640 mm | 645 mm | 655 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 69 mm | 66 mm |
| Stack | 587 mm | 592 mm | 597 mm | 603 mm | 610 mm |
| Reach | 410 mm | 409 mm | 417 mm | 425 mm | 438 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 72 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 160 mm | 165 mm | 170 mm | 175 mm | 180 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1078 mm | 1078 mm | 1088 mm | 1093 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 593 mm | 595 mm | 597 mm | 596 mm | 599 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
CROSSWAY URBAN XT-EDITION LADY belongs to the Merida Crossway model. Merida released 210 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, CROSSWAY URBAN XT-EDITION LADY has a weight of 11.59 kg (25.55 lbs). In conclusion, the average Hybrid bike weighs 19.5% more than CROSSWAY URBAN XT-EDITION LADY.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Merida CROSSWAY URBAN XT-EDITION LADY 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY URBAN XT-EDITION LADY comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
