Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
SR NCX lite E-RL air 63
Drivetrain
Rear Derailleur
Shimano XT-T
Front Derailleur
Shimano XT-48
Shift Levers
Shimano XT
Cassette
Shimano CS-HG62-10 11-34
Crank
Shimano XT 48-36-26 CG
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA comp Pro D
Tires
MERIDA Speed Lite 40 KV
Brakes
Brakes
Shimano T445 160 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 620 R12
Headset
Conoid semi neck
Seat
Saddle
Cross Sport
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 51 mm |
| Trail | 67 mm | 67 mm | 65 mm | 65 mm | 61 mm | 61 mm | 61 mm | 57 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 667 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 697 mm | 722 mm | 738 mm | 755 mm | 785 mm | 809 mm | 837 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

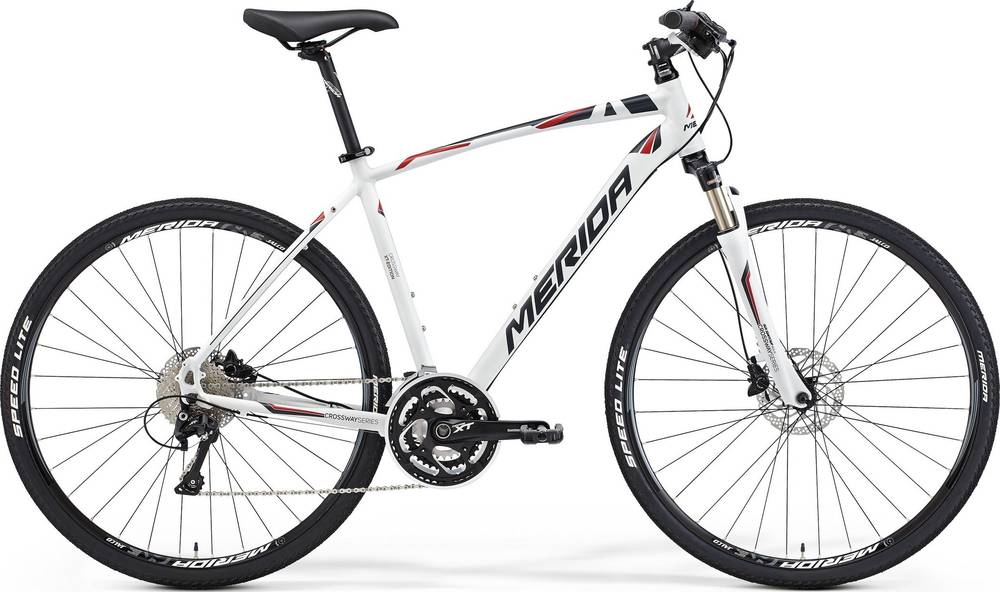

Crossway XT-Edition / -Lady is a Merida Crossway model. Merida launched 210 bikes of this model so far. You can easily view all of the Merida Crossway bikes models from 2015, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crossway XT-Edition / -Lady components
Fork
Merida Crossway XT-Edition / -Lady 2015 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida Crossway XT-Edition / -Lady 2015, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
