Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS LADY
Suspension Fork
Suntour NCX E-RL 63mm air fork with remote lockout
Drivetrain
Rear Derailleur
Shimano XT T8000
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 30 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
Shimano XT T8000 48-36-26 with chainguard
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Shimano M4050 centerlock quick release hubs
Rear Hub
Shimano M4050 centerlock quick release hubs
Rims
MERIDA Comp D
Spokes
Black stainless
Tires
Maxxis Overdrive II 40c kevlar puncture protection and reflective strip
Brakes
Brakes
Shimano M500 hydraulic disc, 160mm rotors
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2339
Seat
Saddle
Crossway Comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.6 mm |
| Front Center | 629 mm | 634 mm | 638 mm | 649 mm | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 75 mm | 72 mm | 72 mm | 68 mm |
| Stack | 618 mm | 618 mm | 629 mm | 644 mm | 665 mm |
| Reach | 392 mm | 397 mm | 403 mm | 409 mm | 416 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1087 mm | 1092 mm | 1096 mm | 1107 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 657 mm | 657 mm | 657 mm | 658 mm | 658 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

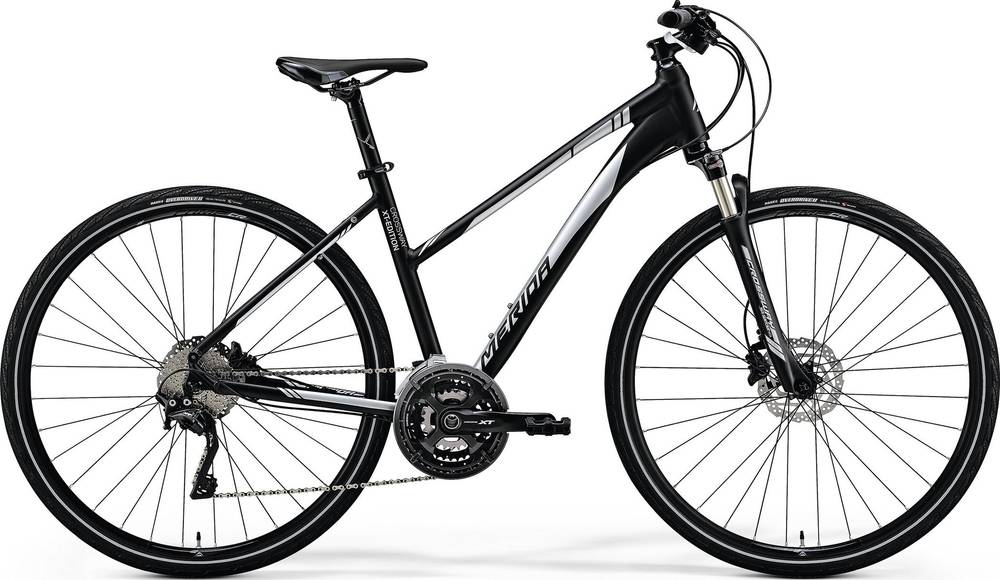

CROSSWAY XT-EDITION LADY is part of the Merida Crossway model. Merida released 210 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.41 kg (27.36 lbs), Merida bike is considerably lighter than average. In conclusion, the average Hybrid bike weighs 11.6% more than CROSSWAY XT-EDITION LADY.
CROSSWAY XT-EDITION LADY components
Fork
The CROSSWAY XT-EDITION LADY comes factory-installed with the SunTour NCX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the CROSSWAY XT-EDITION LADY model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
