Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CYCLO CROSS LITE
Suspension Fork
CC Carbon disc 15
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano 105 D
Shift Levers
Shimano 105
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer 46-36 Mega
Bottom Bracket
attached
Chain
FSA F11S
Wheels
Front Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rear Hub
Bearing Disc-15 Road Axle / Bearing Disc cassette
Rims
MERIDA comp 22 disc cross
Tires
Continental Cyclocross Race 35 fold
Brakes
Brakes
Tektro Spyre disc 160
Brake Levers
On Bar Lever additional
Cockpit
Handlebar
MERIDA Road Pro Classic OS
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
MERIDA Race 1
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 589 mm | 601 mm | 602 mm | 606 mm | 611 mm | 631 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 74 mm | 69 mm | 64 mm | 64 mm | 64 mm |
| Stack | 525 mm | 547 mm | 563 mm | 581 mm | 595 mm | 614 mm |
| Reach | 372 mm | 381 mm | 381 mm | 391 mm | 391 mm | 405 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1019 mm | 1020 mm | 1025 mm | 1030 mm | 1050 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 742 mm | 766 mm | 783 mm | 806 mm | 819 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

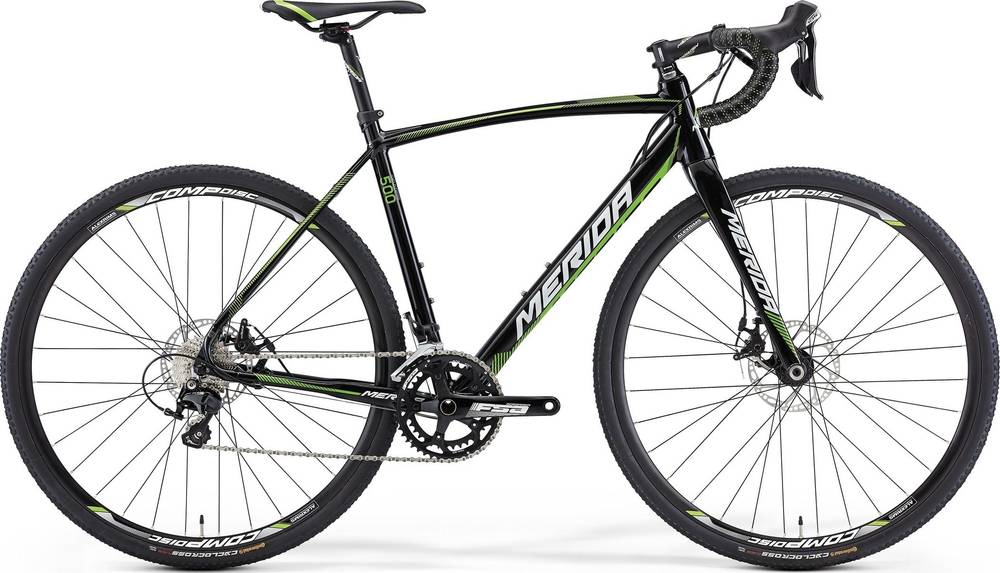

Model Overview
Cyclo Cross 500 completes the Merida Cyclo model. Merida released 28 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Merida Cyclo Cross 500 2015, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
