Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 400Wh -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-SPRESSO TOUR
Suspension Fork
SF16-NEX-DS-700C 50 [700C]
Drivetrain
Rear Derailleur
Deore-10
Shift Levers
Shimano Deore rapidfire plus 10 I-Spec
Cassette
CS-HG50-10 11-36
Crank
Metropolis AL-8/IS
Chain
x10e EPT
Wheels
Front Hub
Deore HB-M615 / Deore FH-M615
Rear Hub
Deore HB-M615 / Deore FH-M615
Rims
MERIDA comp D
Spokes
stainless
Tires
ENERGIZER LIFE
Brakes
Brakes
HD-M315 180 / 160
Brake Levers
attached
Cockpit
Handlebar
HB-RB11
Headset
VP-J203PES
Seat
Saddle
MERIDA E27
Seatpost
XM Comp D SB15 31.6
Motor & Battery
Motor
Bosch Performance Line
Battery
Bosch PowerPack 400Wh
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.68 mm | 1.67 mm |
| Front Center | 623 mm | 634 mm | 649 mm |
| Rake | 42 mm | 43 mm | 42 mm |
| Trail | 76 mm | 75 mm | 72 mm |
| Stack | 623 mm | 642 mm | 663 mm |
| Reach | 379 mm | 383 mm | 397 mm |
| Top Tube Length | 571 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1075 mm | 1086 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 643 mm | 635 mm | 633 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

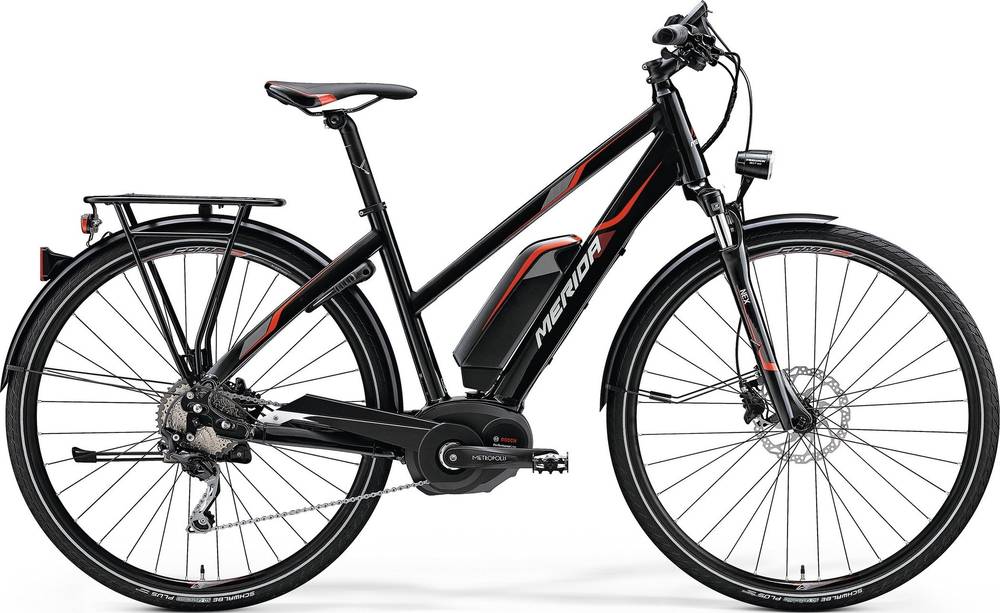

E-SPRESSO TOUR 410 completes the Merida E E Spresso model. There are 11 e-bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-SPRESSO TOUR 410 components
Fork
The E-SPRESSO TOUR 410 comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The E-SPRESSO TOUR 410 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
