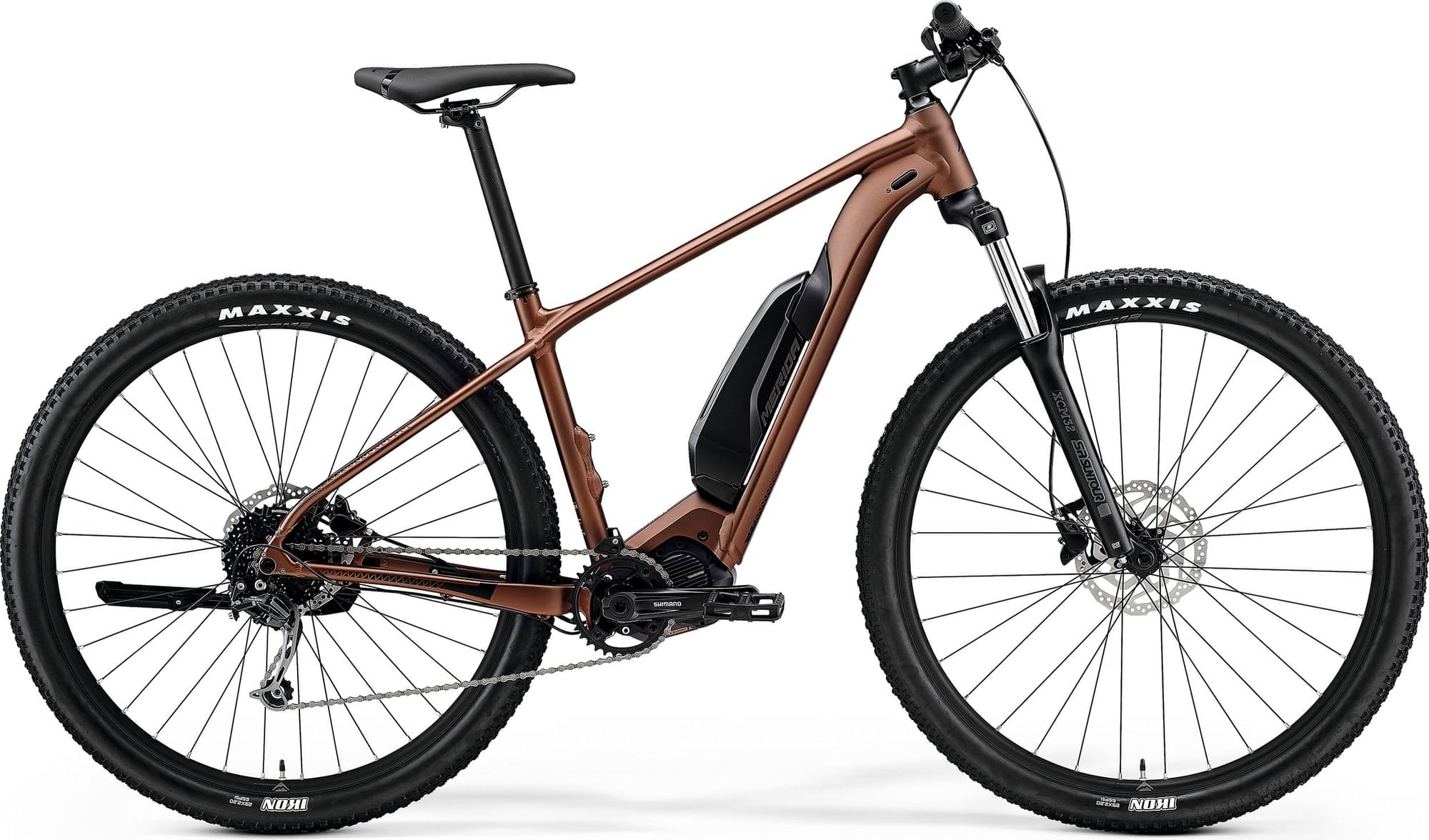

Merida eBIG.NINE 300 SE 2023
2023 E-bike
Estimate price |
2,835$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE, material: aluminium *max. wheelsize 29x2.20" without fender max./ 29"x2.00" with fender max. wheelsize, 148x12mm axle standard, external
Suspension Fork
SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e9S
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", kevlar bead
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 2341
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 398 mm | 416 mm | 433 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1119 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 773 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
eBIG.NINE 300 SE completes the Merida E Ebignine model. There are 51 e-bikes that carry this model name. You can easily view all of the Merida E Ebignine e-bikes models from 2023, here.
Model range prices
Merida eBIG.NINE 300 SE 2023 is the most affordable e-bike of this model and has a price of 2547$. On the other hand, Merida eBIG.NINE 700 EQ 2023, is the most expensive and costs 4330$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 2547$. In conclusion, this e-bike price is 3.83% higher than the price of the average Crosscountry e-bike.
eBIG.NINE 300 SE components
Fork
The eBIG.NINE 300 SE comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on eBIG.NINE 300 SE are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eBIG.NINE 300 SE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Merida eBIG.NINE 300 SE e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
