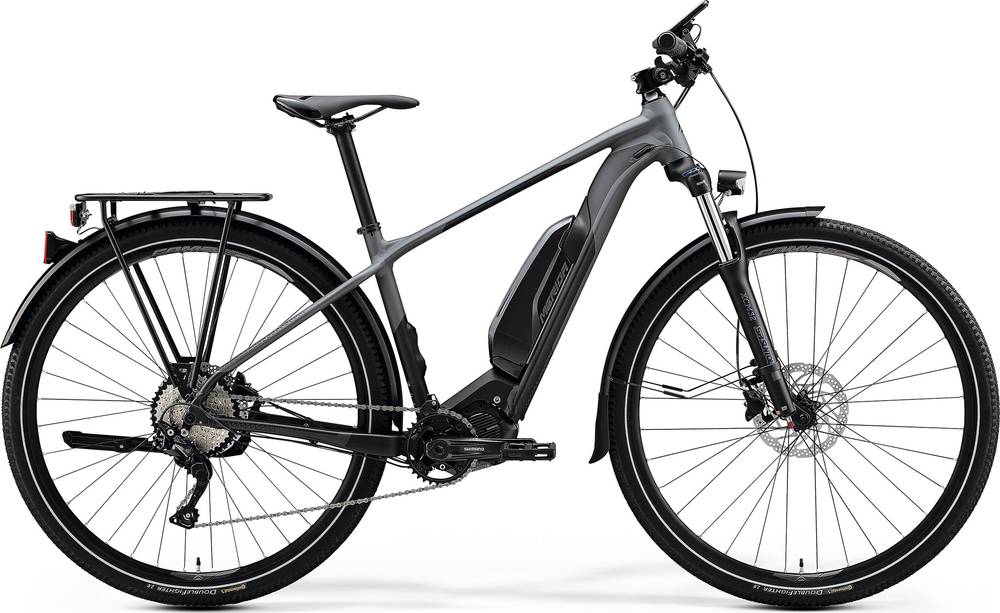

Merida eBIG.NINE 300 SE EQ 2020
2020 E-bike
Weight | 24.71 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE, material: aluminium, 29" wheelsize, 148x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour XCM32 LOR, Coil, 100mm suspension travel, Tapered, 47mm fork offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE70-B, 36 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Double Fighter III, 29x2.0", wire
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA Expert CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 2341 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA Expert, material: aluminium, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 398 mm | 416 mm | 433 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1119 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 773 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
eBIG.NINE 300 SE EQ completes the Merida E Ebignine model. Merida released 51 e-bikes variations of this model so far. You can easily view all of the Merida E Ebignine e-bikes models from 2020, here.
Model range prices
Merida eBIG.NINE 300 SE 2020 is the most affordable e-bike of this model and has a price of 3223$. On the other hand, Merida eBIG.NINE 400 2020, is the most expensive and costs 3892$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida eBIG.NINE 300 SE EQ it’s weighing 24.71 kg (54.48 lbs). At this weight, is a bit heavier than average. In conclusion, the average Crosscountry e-bike weighs 6.46% less than eBIG.NINE 300 SE EQ.
eBIG.NINE 300 SE EQ components
Fork
The eBIG.NINE 300 SE EQ comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on eBIG.NINE 300 SE EQ are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG.NINE 300 SE EQ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
