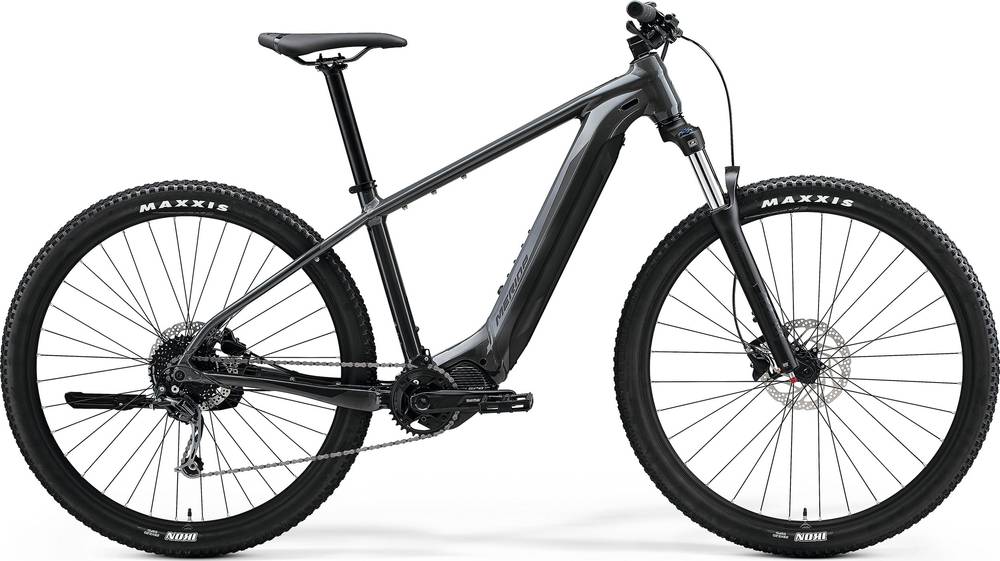

Merida eBIG.NINE 400 2021
2021 E-bike
Estimate price |
4,282$
Weight | 22.07 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth, Shimano FCEM600
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", kevlar bead
Brakes
Brakes
Shimano MT-200, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 180 mm
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm all sizes
Handlebar
MERIDA EXPERT eTR, 760mm width, 20mm rise
Headset
MERIDA-8157
Seat
Saddle
MERIDA COMP CC, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh
Remote
Shimano SC-E5003
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 767 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 100 mm | 99 mm | 100 mm | 100 mm |
| Stack | 633 mm | 637 mm | 647 mm | 656 mm |
| Reach | 408 mm | 424 mm | 442 mm | 459 mm |
| Top Tube Length | 585 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1162 mm | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 716 mm | 747 mm | 791 mm | 832 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
eBIG.NINE 400 is part of the Merida E Ebignine model. Merida released 51 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Merida eBIG.NINE 300 SE EQ 2021 is the cheapest e-bike model and costs 2693$. Merida eBIG.NINE 400 2021 is the most expensive one and costs 3892$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 3892$. Doing a quick comparison, we notice that eBIG.NINE 400 price is 58.66% more expensive than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida eBIG.NINE 400 it’s weighing 22.07 kg (48.66 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.17% lighter than the average Crosscountry e-bike.
Overview of components
Fork
The eBIG.NINE 400 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Merida eBIG.NINE 400 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eBIG.NINE 400 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
eBIG.NINE 400 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
