Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE
Suspension Fork
Suntour Raidon32 LO-R, Air, 100mm suspension travel, Tapered
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
no
Shift Levers
no / Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE80-B, 38 teeth
Chain
KMC X10e
Wheels
Front Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock
Rear Hub
Shimano Deore, 110x15mm width, 32 spoke holes, Centerlock / Shimano Deore, 148x12mm width, 36 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width,
Spokes
Black stainless
Tires
Continental Double Fighter III, 29x2.0", wire
Brakes
Brakes
Shimano MT-500
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Headset
MERIDA 2341 Neck, 2191022388
Seat
Saddle
MERIDA Comfort
Seatpost
MERIDA Expert, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 398 mm | 416 mm | 433 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1119 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 773 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

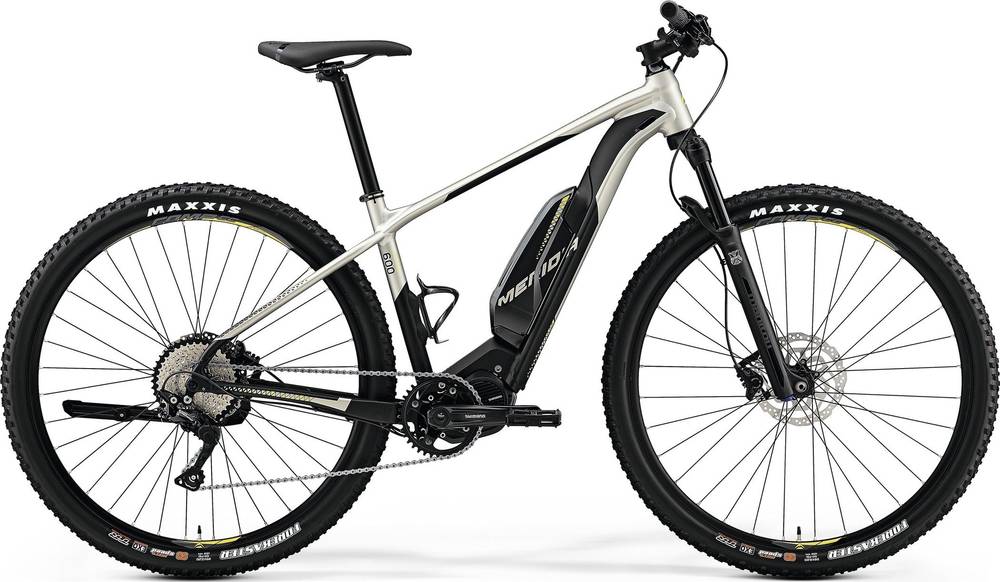

eBIG.NINE 600 EQ belongs to the Merida E Ebignine model. Merida released 51 e-bikes variations of this model so far. Take a sneak peek at all Merida E Ebignine e-bikes models from 2019, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Merida eBIG.NINE 600 EQ 2019, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG.NINE 600 EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
eBIG.NINE 600 EQ comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
