Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE
Suspension Fork
Rock Shox Reba RL 29 boost 100 onelock
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano XT 11-46 11s
Crank
Shimano 38 DCG
Chain
KMC X11EL
Wheels
Front Hub
attached
Rear Hub
attached
Rims
DT Swiss M1700 boost TC
Spokes
Black stainless
Tires
Maxxis Ikon 29 2.2 fold + EXO Protection
Brakes
Brakes
Shimano XT fin ice
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 720 R10
Seat
Saddle
MERIDA Expert
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E8010 500Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

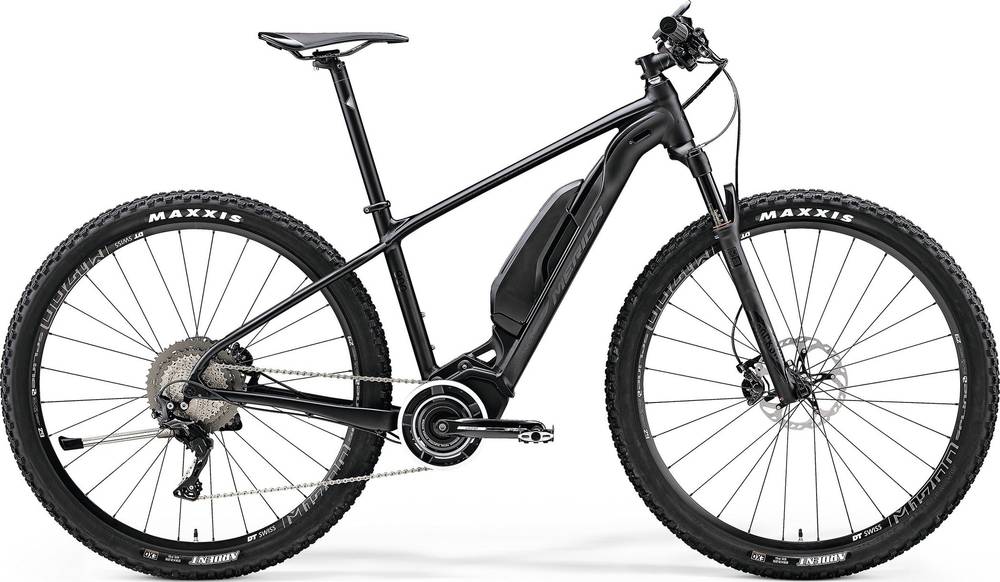

eBIG.NINE 900 completes the Merida E Ebignine model. 51 e-bikes variations carry this model name so far. You can easily view all of the Merida E Ebignine e-bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The eBIG.NINE 900 comes factory-installed with the RockShox Reba fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the eBIG.NINE 900 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG.NINE 900 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
