Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE
Suspension Fork
Fox Rhythm 32 Float, Air, 100mm suspension travel, Tapered, Remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT
Front Derailleur
no
Shift Levers
no / Shimano XT 11
Cassette
Shimano M7000, 11-46 teeth, 11 speed
Crank
Shimano CRE80-B, 38 teeth
Chain
KMC X11e
Chain Guide
N/A
Pedals
VP VPE-537
Wheels
Front Hub
DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear
Rear Hub
DT Swiss Spline M1700 wheelset, Centerlock, 110x15mm front, 148x12mm rear
Rims
DT Swiss Spline M1700, 110x15mm width front hub, 148x12mm width rear hub, 35mm inner width, Centerlock
Spokes
attached
Tires
Maxxis Forekaster, 29x2.2", fold
Brakes
Brakes
Shimano XT fin
Brake Levers
attached
Cockpit
Stem
Merida Expert CC, 31.8mm diameter, 6° stem angle
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Grips
Merida Expert EC
Headset
MERIDA M2333 neck, 2191025648
Seat
Saddle
MERIDA Expert CC
Seatpost
MERIDA Expert, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 398 mm | 416 mm | 433 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1119 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 773 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

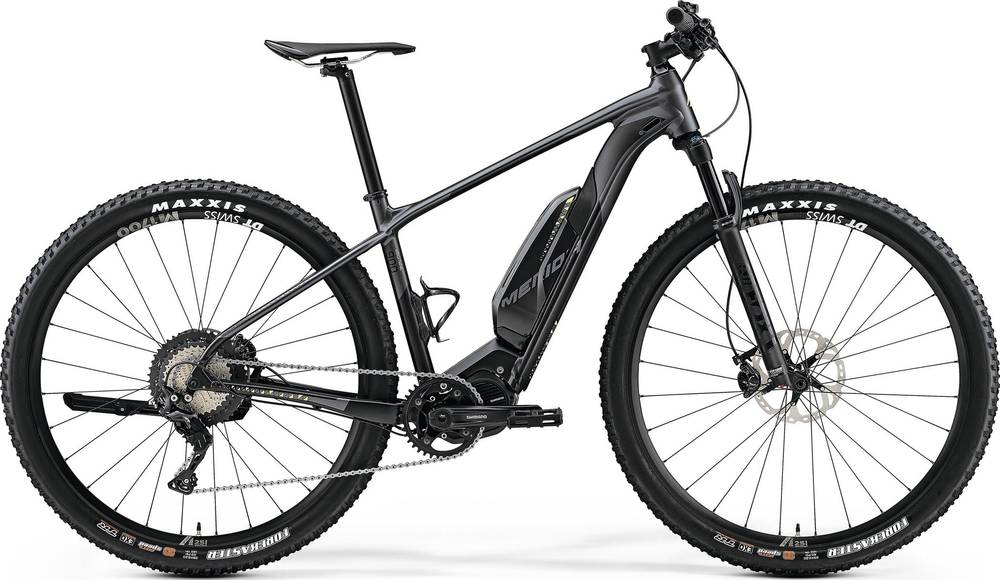

eBIG.NINE 900 is a Merida E Ebignine model. There are 51 e-bikes that carry this model name. Take a sneak peek at all Merida E Ebignine e-bikes models from 2019, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida eBIG.NINE 900 it’s weighing 19.25 kg (42.44 lbs). At this weight, is much lighter than average. To sum up, it’s 20.57% lighter than the average weight of Crosscountry e-bikes.
eBIG.NINE 900 components
Fork
Merida eBIG.NINE 900 2019 e-bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on eBIG.NINE 900 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eBIG.NINE 900 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
