Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE/SEVEN E8000
Suspension Fork
Manitou Machete Comp Air fork, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 10 speed, 11-42 teeth
Crank
Shimano CRE80-B 38
Chain
KMC X10e
Wheels
Front Hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard front and rear
Rear Hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard front and rear
Rims
MERIDA BIG.NINE Comp CC
Spokes
Black stainless
Tires
Maxxis Forekaster
Brakes
Brakes
Shimano M500 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Headset
MERIDA 2341 Neck
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.42 mm | 1.58 mm | 1.58 mm | 1.53 mm | 1.5 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 347 mm | 290 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 667 mm | 688 mm | 688 mm | 673 mm | 673 mm | 693 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 50 mm | 51 mm |
| Trail | 98 mm | 98 mm | 106 mm | 78 mm | 86 mm | 87 mm | 86 mm |
| Stack | 576 mm | 585 mm | 585 mm | 631 mm | 631 mm | 640 mm | 649 mm |
| Reach | 396 mm | 413 mm | 413 mm | 399 mm | 399 mm | 417 mm | 434 mm |
| Top Tube Length | 567 mm | 587 mm | 587 mm | 587 mm | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 430 mm | 430 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 135 mm | 115 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1101 mm | 1122 mm | 1122 mm | 1120 mm | 1120 mm | 1140 mm | 1161 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 707 mm | 746 mm | 746 mm | 730 mm | 730 mm | 774 mm | 816 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

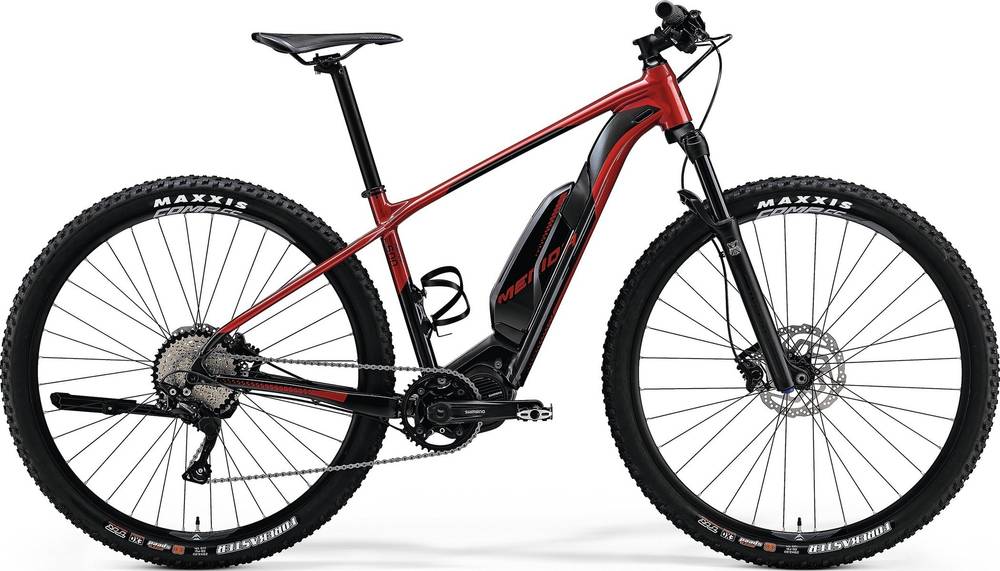

eBIG.NINE/SEVEN 600 is part of the Merida E Ebignineseven model. 5 e-bikes variations carry this model name so far. You can easily view all of the Merida E Ebignineseven e-bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This e-bike has the Manitou Machete Comp fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Merida eBIG.NINE/SEVEN 600 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 7 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
