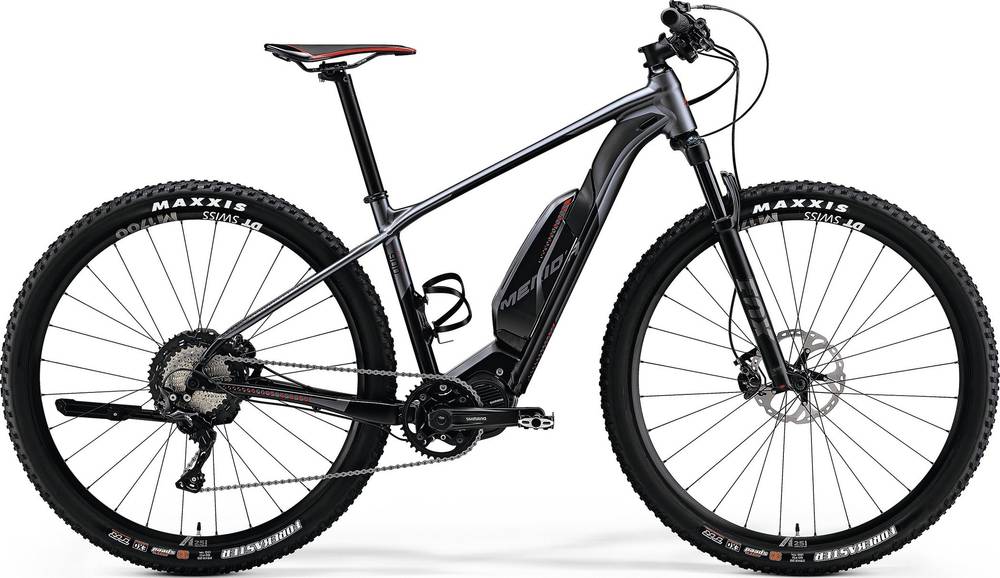

Merida eBIG.NINE/SEVEN 900 2018
2018 E-bike
Weight | 18.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" / 29" -
Fork Fox Rhythm Float 32 -
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE/SEVEN E8000
Suspension Fork
FOX Rhythm 32 Float Boost
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano SLX, 11 speed, 11-46 teeth
Crank
Shimano CRE80-B 38
Chain
KMC X11e
Wheels
Rims
DT Swiss M1700 Spline TWO boost TC wheelset
Tires
Maxxis Forekaster
Brakes
Brakes
Shimano XT hydraulic disc brakes with Ice-tech cooling, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Headset
MERIDA 2333 Neck
Seat
Saddle
MERIDA Expert
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.42 mm | 1.58 mm | 1.58 mm | 1.53 mm | 1.5 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 347 mm | 290 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 667 mm | 688 mm | 688 mm | 673 mm | 673 mm | 693 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 50 mm | 51 mm |
| Trail | 98 mm | 98 mm | 106 mm | 78 mm | 86 mm | 87 mm | 86 mm |
| Stack | 576 mm | 585 mm | 585 mm | 631 mm | 631 mm | 640 mm | 649 mm |
| Reach | 396 mm | 413 mm | 413 mm | 399 mm | 399 mm | 417 mm | 434 mm |
| Top Tube Length | 567 mm | 587 mm | 587 mm | 587 mm | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 430 mm | 430 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 135 mm | 115 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1101 mm | 1122 mm | 1122 mm | 1120 mm | 1120 mm | 1140 mm | 1161 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 707 mm | 746 mm | 746 mm | 730 mm | 730 mm | 774 mm | 816 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eBIG.NINE/SEVEN 900 is part of the Merida E Ebignineseven model. Merida released 5 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida eBIG.NINE/SEVEN 900 it’s weighing 18.9 kg (41.67 lbs). At this weight, is much lighter than average. To sum up, it’s 22.8% lighter than the average weight of Crosscountry e-bikes.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 32 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on eBIG.NINE/SEVEN 900 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
eBIG.NINE/SEVEN 900 comes in 7 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
