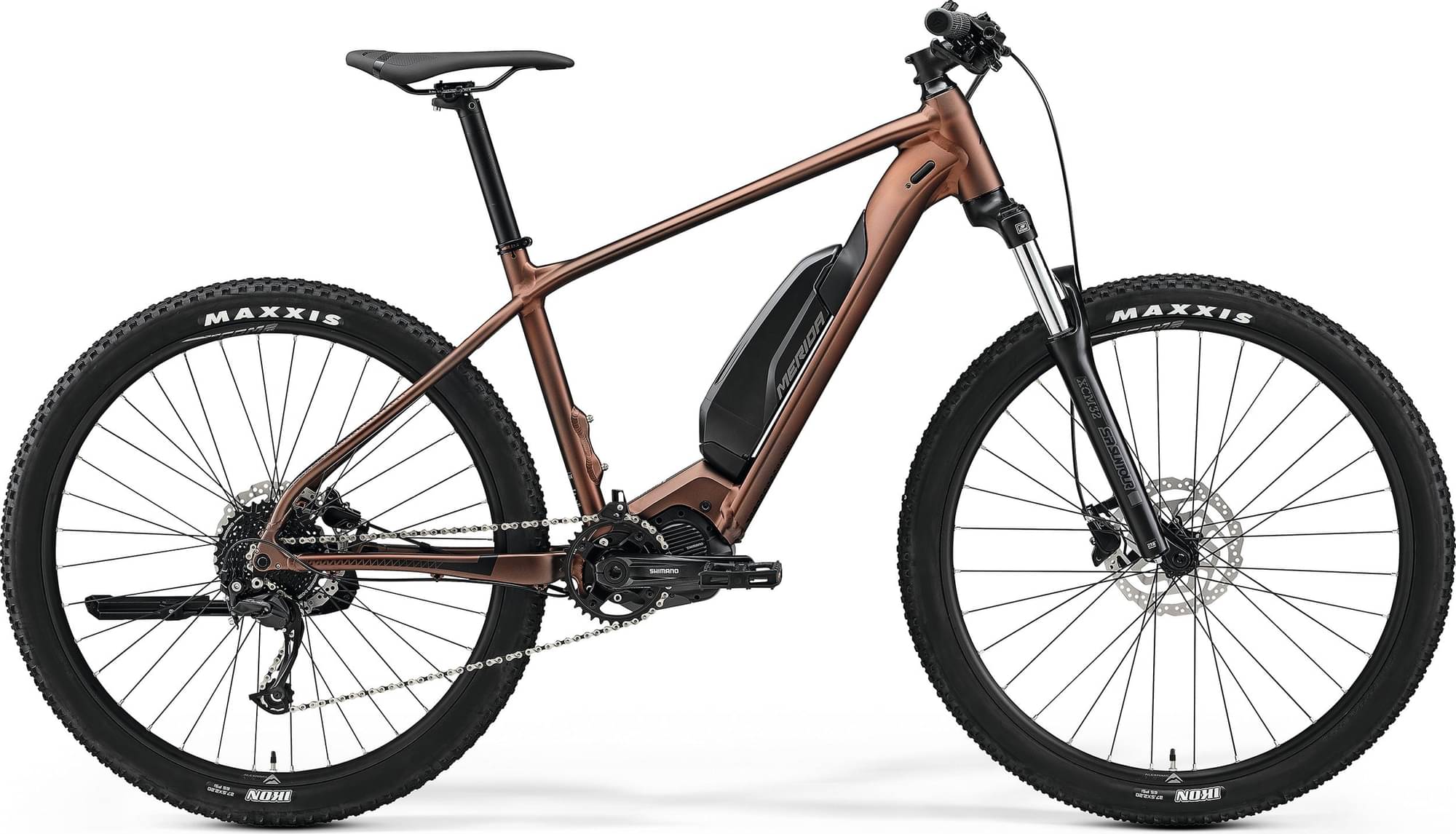

Merida eBIG.SEVEN 300 SE 2022
2022 E-bike
Estimate price |
2,835$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.SEVEN LITE, material: aluminium, max. wheelsize 27.5x2.20" without fender max./ 27.5"x2.00" with fender max. wheelsize, 148x12mm axle standard, external
Suspension Fork
SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 27.5x2.2" max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e9S
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2"
Brakes
Brakes
Shimano MT200, 2 piston
Disk Rotors
Shimano RT10, 180 mm
Cockpit
Handlebar
MERIDA EXPERT CC, 720mm width, 10mm rise
Headset
MERIDA 2341
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E5000A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 666 mm | 667 mm | 688 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 567 mm | 577 mm | 586 mm |
| Reach | 399 mm | 397 mm | 414 mm |
| Top Tube Length | 568 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 453 mm | 436 mm | 436 mm |
| Wheelbase | 1118 mm | 1102 mm | 1123 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 671 mm | 708 mm | 747 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
eBIG.SEVEN 300 SE is a Merida E Ebigseven model. 17 e-bikes variations carry this model name so far. You can easily view all of the Merida E Ebigseven e-bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 2547$. Comparing this to the average Crosscountry e-bike price, we see that the price is 3.83% higher.
eBIG.SEVEN 300 SE components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the eBIG.SEVEN 300 SE model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eBIG.SEVEN 300 SE comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Merida eBIG.SEVEN 300 SE e-bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
