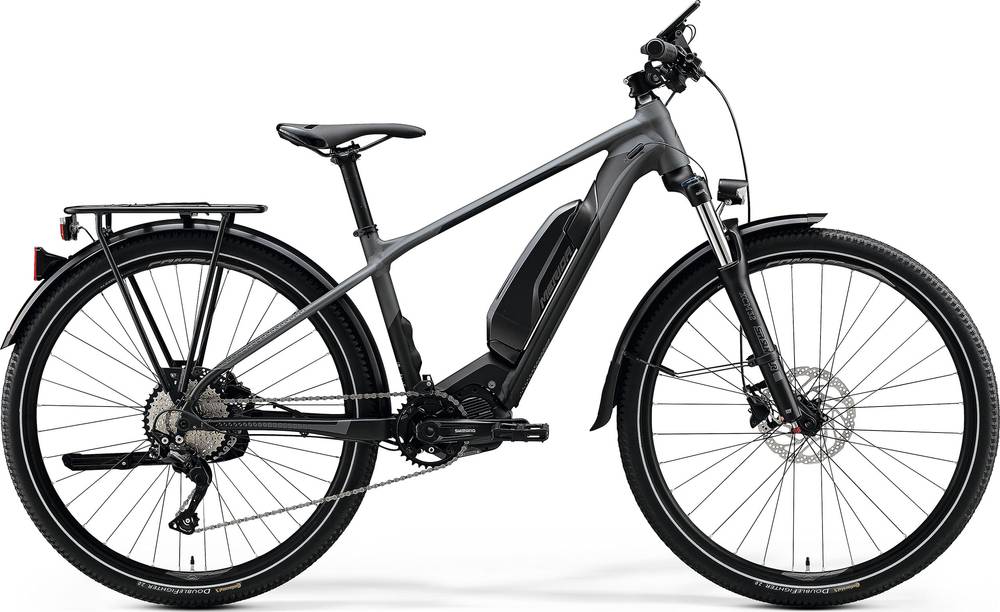

Merida eBIG.SEVEN 300 SE EQ 2020
2020 E-bike
Weight | 24.44 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.SEVEN LITE, material: aluminium, 27.5" wheelsize, 148x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour XCM32 LOR, Coil, 100mm suspension travel, Tapered, 47mm fork offset
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE70-12-B, 36 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Double Fighter III, 27.5x2.0", wire
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA Expert CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 2341 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA Expert, material: aluminium, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 666 mm | 667 mm | 688 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 567 mm | 577 mm | 586 mm |
| Reach | 399 mm | 397 mm | 414 mm |
| Top Tube Length | 568 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 453 mm | 436 mm | 436 mm |
| Wheelbase | 1118 mm | 1102 mm | 1123 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 671 mm | 708 mm | 747 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
eBIG.SEVEN 300 SE EQ completes the Merida E Ebigseven model. There are 17 e-bikes that carry this model name. You can easily view all of the Merida E Ebigseven e-bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eBIG.SEVEN 300 SE EQ weighs 24.44 kg (53.88 lbs) and is a bit heavier than the average. In short, the average Crosscountry e-bike weight is 5.3% lower than this one.
eBIG.SEVEN 300 SE EQ components
Fork
Merida eBIG.SEVEN 300 SE EQ 2020 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The eBIG.SEVEN 300 SE EQ 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, finding one for you shouldn’t be a problem.
