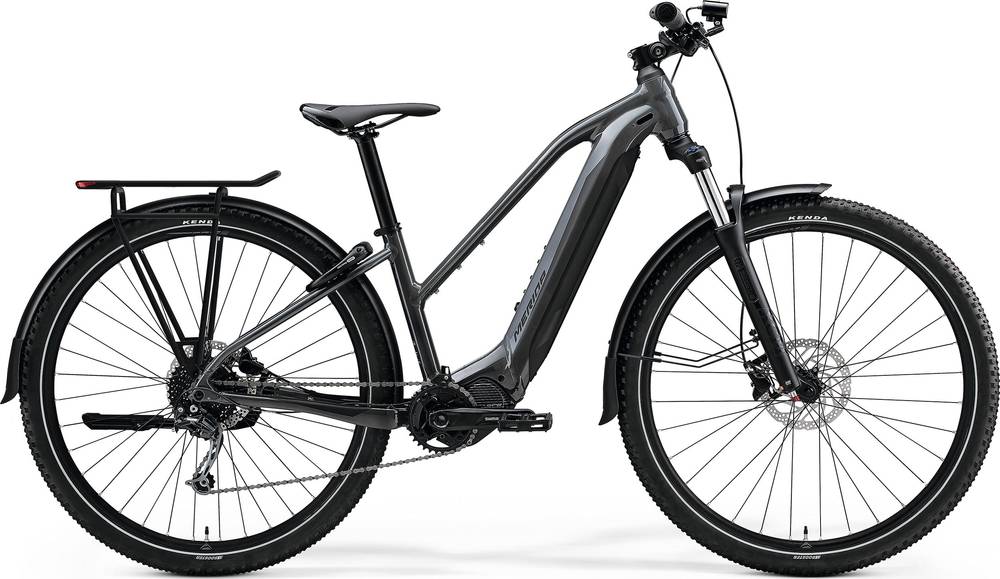

Merida eBIG.TOUR 400 EQ 2021
2021 E-bike
Estimate price |
4,282$
Weight | 24.83 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork SunTour XCM -
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.TOUR LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth, Shimano FCEM600
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
KENDA Booster, 29x2.2", wire
Brakes
Brakes
Shimano MT-200, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 180 mm
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm all sizes
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA-8155 (for the steerer 1-1/8"~1.5")
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh
Remote
Shimano SC-E5003
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 767 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 84 mm | 83 mm | 84 mm | 84 mm |
| Stack | 633 mm | 637 mm | 647 mm | 656 mm |
| Reach | 408 mm | 424 mm | 442 mm | 459 mm |
| Top Tube Length | 585 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1162 mm | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 627 mm | 650 | 662 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eBIG.TOUR 400 EQ is a Merida E Ebigtour model. 22 e-bikes variations carry this model name so far. You can easily view all of the Merida E Ebigtour e-bikes models from 2021, here.
Model range prices
The most economical model, the Merida eBIG.TOUR 400 EQ 2021 has a starting price of 3892$. Merida eBIG.TOUR 600 EQ 2021 on the other hand is the most expensive at 4379$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring e-bikes average price
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 3892$. In conclusion, this e-bike price is 60.23% more expensive than the price of the average Touring e-bike.
Touring e-bikes average weight
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eBIG.TOUR 400 EQ weighs 24.83 kg (54.74 lbs) and is slightly lighter than the average. In other words, this model is 2.9% lighter than the average Touring e-bike.
eBIG.TOUR 400 EQ components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on eBIG.TOUR 400 EQ are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG.TOUR 400 EQ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
