Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.TOUR LITE IV, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e10s
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Kenda Booster, 29x2.2", wire
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 8155
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 767 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 633 mm | 637 mm | 647 mm | 656 mm |
| Reach | 408 mm | 424 mm | 442 mm | 459 mm |
| Top Tube Length | 585 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1162 mm | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 627 mm | 650 | 662 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

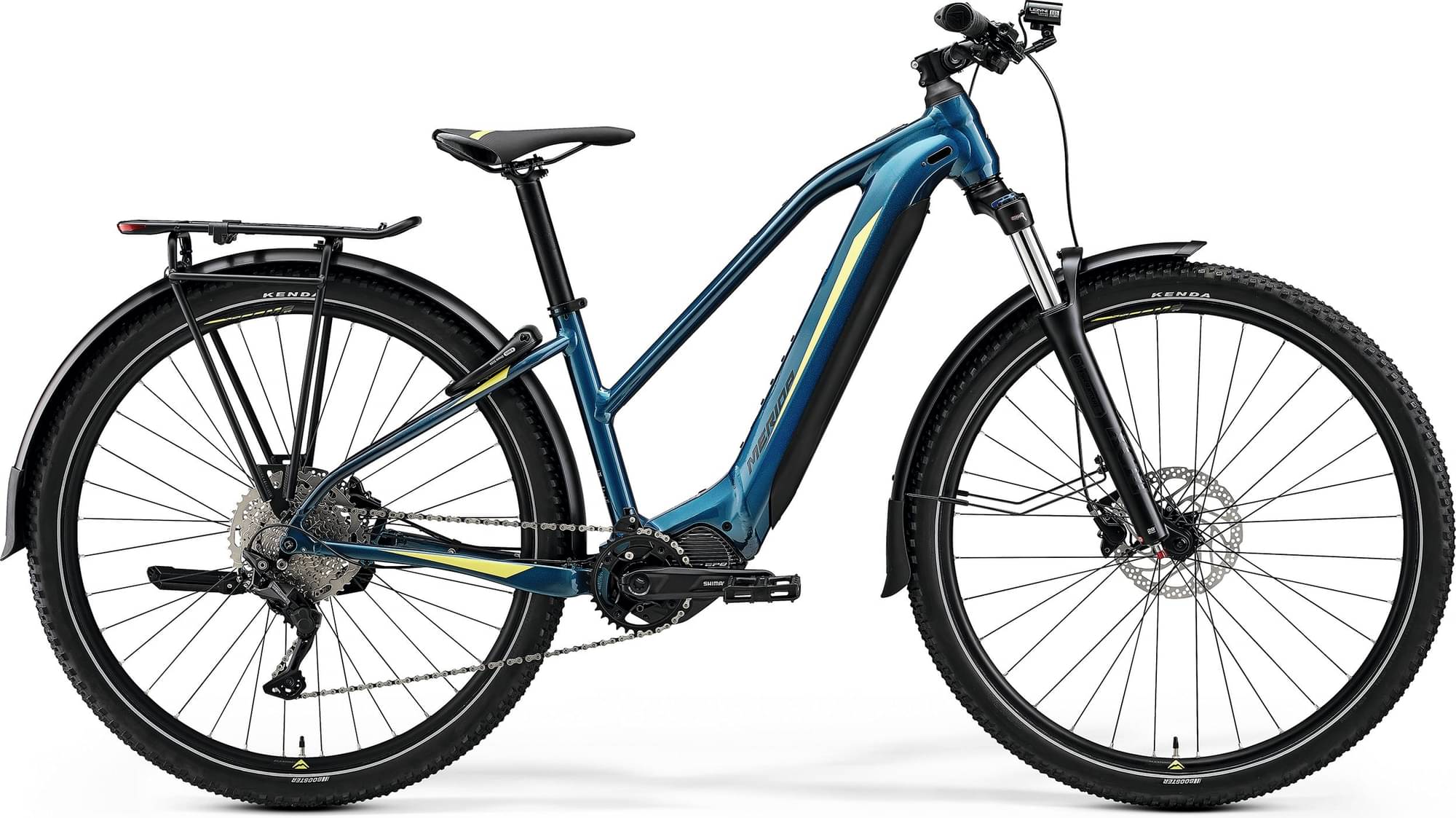

About this model
eBIG.TOUR 475 EQ is a Merida E Ebigtour model. 22 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
eBIG.TOUR 475 EQ components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the eBIG.TOUR 475 EQ e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG.TOUR 475 EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
