Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Fork SunTour RAIDON
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.TRAIL
Suspension Fork
Suntour Raidon34, Air, 130mm suspension travel, Tapered
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
no
Shift Levers
no / Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Chain
KMC e11T
Chain Guide
N/A
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock
Rims
MERIDA Expert CC, 22.8mm inner width
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.35", fold
Brakes
Brakes
Shimano MT-200
Brake Levers
attached
Cockpit
Stem
Merida Expert eTR, 35mm diameter, 0° stem angle
Handlebar
MERIDA Expert eTR, 780mm width, 20mm rise
Grips
Merida Expert EC
Headset
FSA NO.55EP neck, 2191017484
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA Expert, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.522 mm | 1.474 mm | 1.43 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 702 mm | 726 mm | 749 mm | 773 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 637 mm | 647 mm | 656 mm | 665 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm |
| Top Tube Length | 582 mm | 604 mm | 627 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1130 mm | 1154 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 650 | 682 mm | 705 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

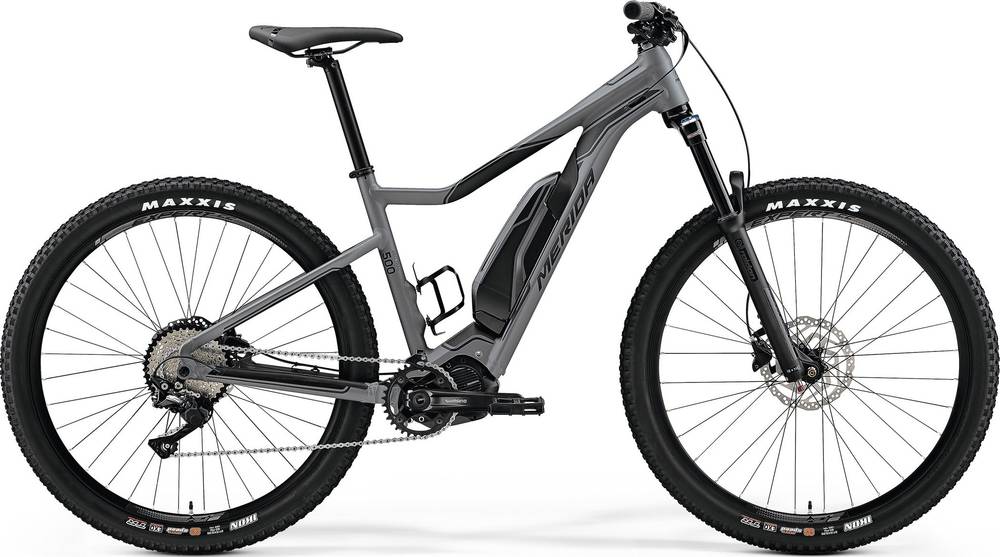

eBIG.TRAIL 500 completes the Merida E Ebigtrail model. Merida released 10 e-bikes variations of this model so far. Take a sneak peek at all Merida E Ebigtrail e-bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida eBIG.TRAIL 500 it’s weighing 18.85 kg (41.56 lbs). At this weight, is much lighter than average. To sum up, it’s 25.73% lighter than the average weight of Trail e-bikes.
eBIG.TRAIL 500 components
Fork
The SunTour RAIDON is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The eBIG.TRAIL 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
eBIG.TRAIL 500 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
