Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.TRAIL
Suspension Fork
Rock Shox Revelation RC B SoloAir-130mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Front Derailleur
N/A
Shift Levers
Shimano SLX 11
Cassette
Shimano SLX, 11 speed, 11-46 teeth
Crank
Shimano CRE80-B 34
Chain
KMC X11e
Chain Guide
N/A
Pedals
VP Components, VPE-537
Wheels
Front Hub
15mm front hub, Shimano Deore, Boost standard centrelock rear
Rear Hub
15mm front hub, Shimano Deore, Boost standard centrelock rear
Rims
MERIDA EXPERT TP
Spokes
Black stainless
Tires
Maxxis Rekon 27.5"+ 2.8" folding
Brakes
Brakes
Shimano SLX hydraulic disc brakes with 203mm rotors
Brake Levers
attached
Cockpit
Stem
Merida Expert SS, 45mm length
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Headset
FSA NO.55EP neck
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA EXPERT Dropper 30.9mm
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.522 mm | 1.474 mm | 1.43 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 702 mm | 726 mm | 749 mm | 773 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 637 mm | 647 mm | 656 mm | 665 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm |
| Top Tube Length | 582 mm | 604 mm | 627 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1130 mm | 1154 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 650 | 682 mm | 705 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

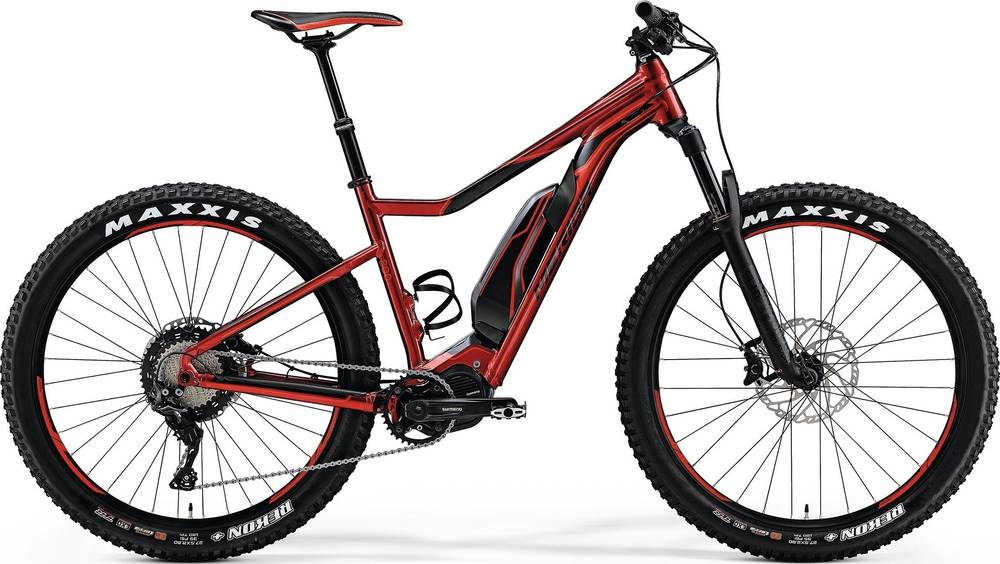

eBIG.TRAIL 800 completes the Merida E Ebigtrail model. Merida launched 10 e-bikes of this model so far. You can easily view all of the Merida E Ebigtrail e-bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 20.7 kg (45.64 lbs), the eBIG.TRAIL 800 model is considerably lighter than average. In conclusion, the average Trail e-bike weighs 14.49% more than eBIG.TRAIL 800.
Overview of components
Fork
Merida eBIG.TRAIL 800 2018 e-bike is equipped with the RockShox Revelation RC fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the eBIG.TRAIL 800 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eBIG.TRAIL 800 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the eBIG.TRAIL 800. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
