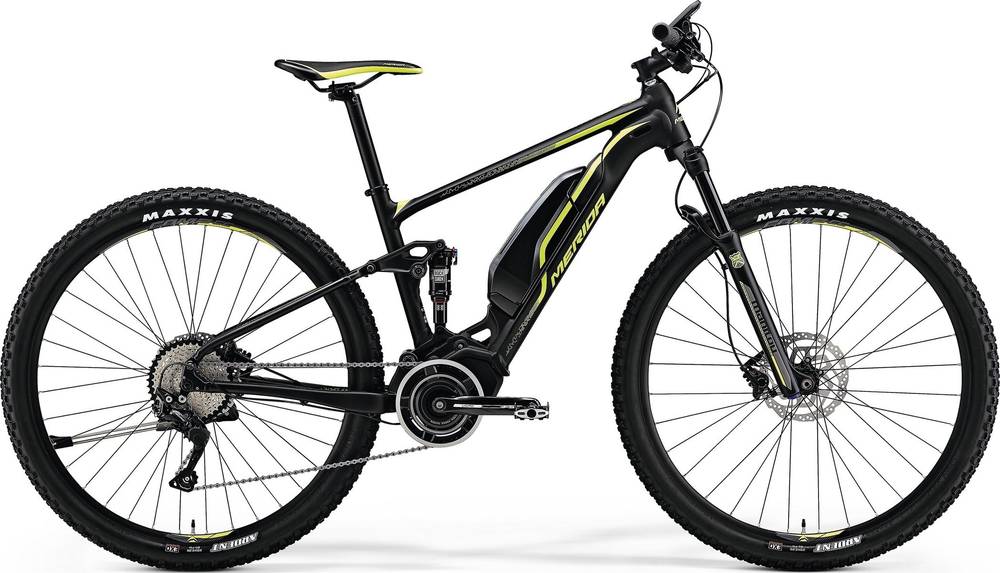

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eNINETY-NINE
Suspension Fork
Manitou Machete Air fork, Boost axle standard, 100mm travel
Rear Shock
Rock Shox Monarch RT
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG50, 10 speed, 11-42 teeth
Crank
Shimano CRE60 38 DCG
Chain
KMC X10e
Wheels
Front Hub
Shimano Deore, Boost standard, centrelock
Rear Hub
Shimano Deore, Boost standard, centrelock
Rims
MERIDA BIG.NINE Comp CC
Spokes
Black stainless
Tires
Maxxis Ardent M315P
Brakes
Brakes
Shimano M500 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Headset
FSA NO.57/61BP-1
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.43 mm | 1.41 mm |
| Front Center | 680 mm | 696 mm | 712 mm | 728 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 604 mm | 608 mm | 618 mm | 627 mm |
| Reach | 406 mm | 420 mm | 432 mm | 444 mm |
| Top Tube Length | 577 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1164 mm | 1180 mm | 1196 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 727 mm | 762 mm | 797 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eNINETY-NINE 500 belongs to the Merida E Eninety Nine model. Merida launched 10 e-bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness e-bikes
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The eNINETY-NINE 500 comes factory-installed with the Manitou Machete Comp fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the eNINETY-NINE 500 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eNINETY-NINE 500 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
