Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eNINETY-NINE (STePS)
Suspension Fork
Suntour Raidon-XC-RLR 29 15 100 CTS
Rear Shock
Rock Shox Monarch RT-D2
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano XT 11-46 11s
Crank
Shimano 38 DCG
Bottom Bracket
STEPS, press-fit
Chain
KMC X11
Wheels
Front Hub
Shimano Deore 15 cen / Shimano Deore boost cen
Rear Hub
Shimano Deore 15 cen / Shimano Deore boost cen
Rims
MERIDA Expert CC
Spokes
Black stainless straight
Tires
Continental Double Fighter 29 2.0
Brakes
Brakes
Shimano SLX ice
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 720 R10
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E8010 500Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.43 mm | 1.41 mm |
| Front Center | 680 mm | 696 mm | 712 mm | 728 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 604 mm | 608 mm | 618 mm | 627 mm |
| Reach | 406 mm | 420 mm | 432 mm | 444 mm |
| Top Tube Length | 577 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1164 mm | 1180 mm | 1196 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 727 mm | 762 mm | 797 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

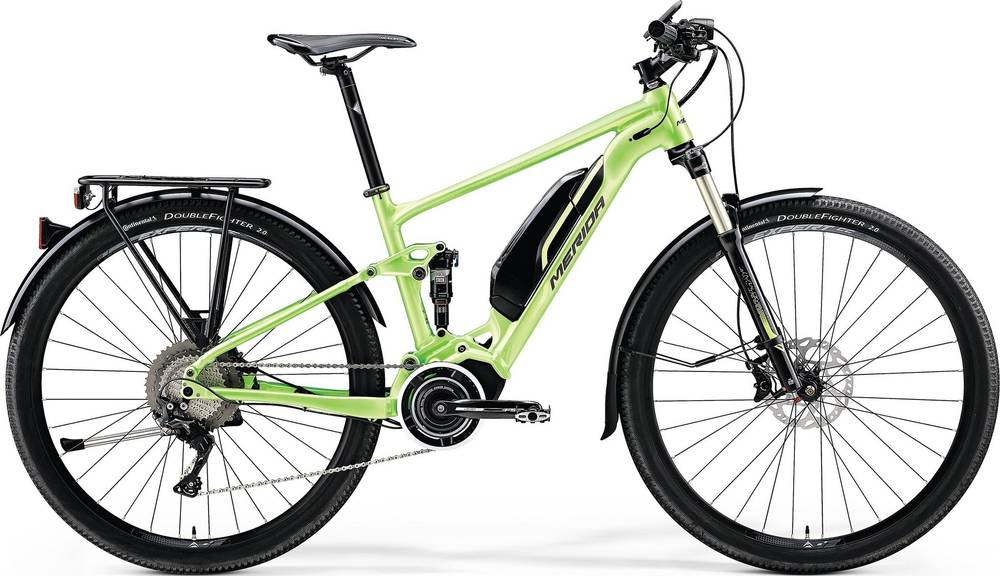

Model Overview
eNINETY-NINE XT-EDITION EQ belongs to the Merida E Eninety Nine model. Merida launched 10 e-bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness e-bikes average price
According to our math, the average price for a trustworthy Fitness e-bike is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the SunTour RAIDON fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the eNINETY-NINE XT-EDITION EQ e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eNINETY-NINE XT-EDITION EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
