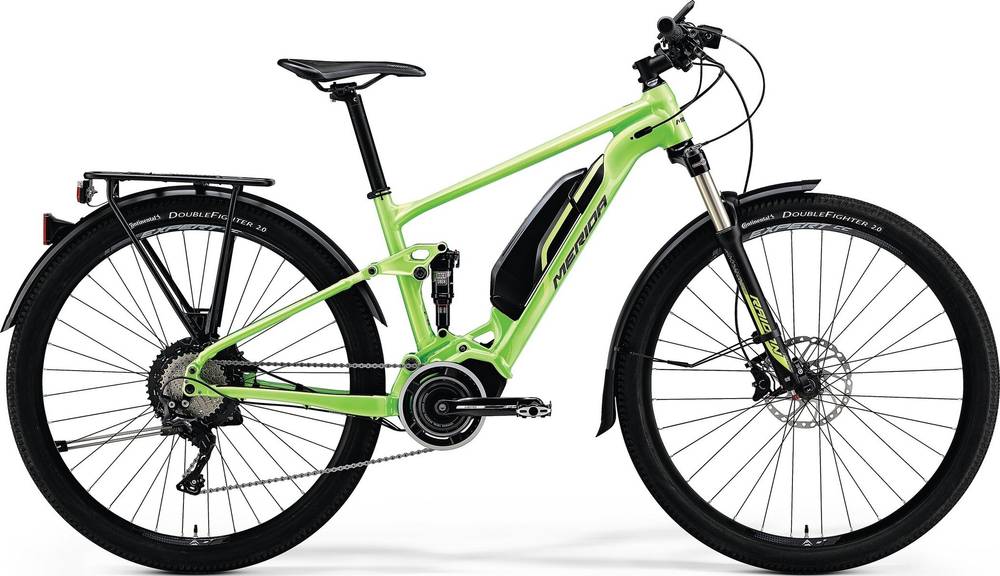

Merida eNINETY-NINE XT-EDITION EQ 2018
2018 E-bike
Weight | 22.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eNINETY-NINE
Suspension Fork
Suntour Raidon-XC-RLR with 15mm bolt through axle, 100mm travel
Rear Shock
Rock Shox Monarch RT
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano SLX, 11 speed, 11-46 teeth
Crank
Shimano CRE60 38 DCG
Chain
KMC X11e
Wheels
Front Hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard rear
Rear Hub
Shimano Deore centrelock, 15mm bolt through front, Boost standard rear
Rims
MERIDA Expert CC
Spokes
Black stainless
Tires
Continental Double Fighter III 29 2.0
Brakes
Brakes
Shimano SLX hydraulic disc brakes with 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 10mm rise, 720mm wide
Headset
FSA NO.55EP neck
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA Expert 30.9mm, 15mm offset
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.43 mm | 1.41 mm |
| Front Center | 680 mm | 696 mm | 712 mm | 728 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 604 mm | 608 mm | 618 mm | 627 mm |
| Reach | 406 mm | 420 mm | 432 mm | 444 mm |
| Top Tube Length | 577 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1164 mm | 1180 mm | 1196 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 727 mm | 762 mm | 797 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
eNINETY-NINE XT-EDITION EQ completes the Merida E Eninety Nine model. 10 e-bikes variations carry this model name so far. You can easily view all of the Merida E Eninety Nine e-bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness e-bikes average price
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, even though the average price of a Fitness e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Fitness e-bikes
On a deeper look, we notice that the average weight of a Fitness e-bike is 22.85 kg (50.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, eNINETY-NINE XT-EDITION EQ has a weight of 22.9 kg (50.49 lbs). In conclusion, the average Fitness e-bike weighs 0.22% less than eNINETY-NINE XT-EDITION EQ.
Overview of components
Fork
The fork installed on this bike is the SunTour RAIDON model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Merida eNINETY-NINE XT-EDITION EQ 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The eNINETY-NINE XT-EDITION EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
eNINETY-NINE XT-EDITION EQ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
