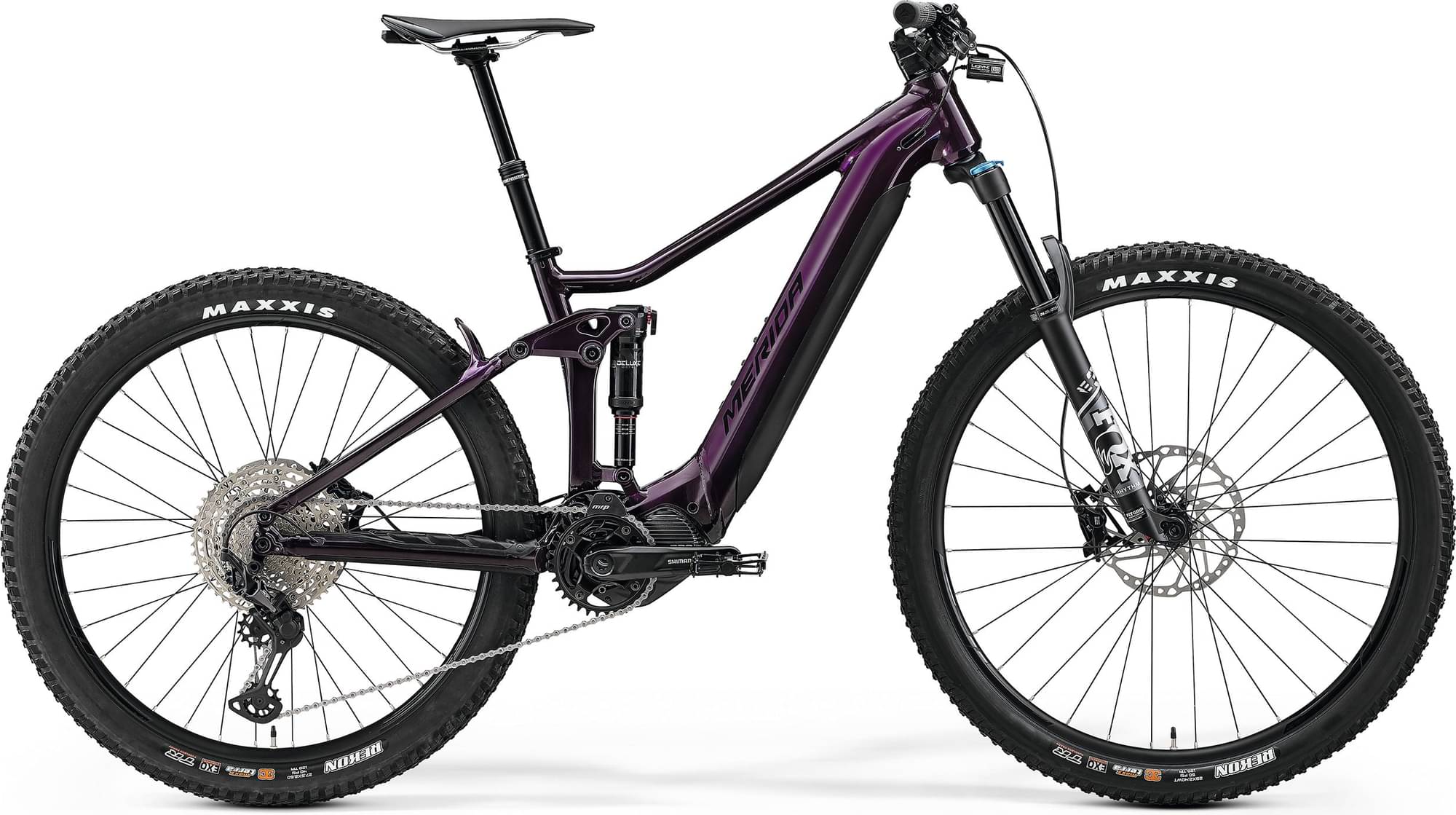

Merida eONE-FORTY 700 2023
2023 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 133mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036 630Wh / Shimano E8035 504Wh for S only -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
FOX Rhythm 34 Float eMTB+, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.5" max wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M6100
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Pedals
VP VPE-527
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra, Rear: Maxxis Rekon, 29x2.4", fold, 3C EXO MaxxTerra
Brakes
Brakes
Shimano SLX, 4 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 50 mm
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - S/M 125mm travel seatpost - L 150mm travel seatpost - XL/XXL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh / Shimano E8035 504Wh for S only
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 788 mm |
| Rake | 47 mm | 47 mm | 47 mm | 49 mm |
| Trail | 112 mm | 112 mm | 112 mm | 109 mm |
| Stack | 627 mm | 632 mm | 636 mm | 640 mm |
| Reach | 415 mm | 435 mm | 455 mm | 474 mm |
| Top Tube Length | 566 mm | 586 mm | 608 mm | 629 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1165 mm | 1187 mm | 1209 mm | 1231 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 734 mm | 735 mm | 732 mm | 738 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eONE-FORTY 700 completes the Merida E Eone Forty model. Merida released 32 e-bikes variations of this model so far. You can easily view all of the Merida E Eone Forty e-bikes models from 2023, here.
Model range prices
Merida eONE-FORTY 400 2023 is the most economical model, with a starting price of 5048$. Merida eONE-FORTY 700 2023 on the other hand costs 6873$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 6873$. In conclusion, this e-bike price is 104.25% more expensive than the price of the average Trail e-bike.
Overview of components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is Rock Shox Deluxe Select+, with a travel distance of 133mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on eONE-FORTY 700 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eONE-FORTY 700 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Merida eONE-FORTY 700 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Merida eONE-FORTY 700 comes with a dropper post. Therefore, climbing or descending will be a breeze.
