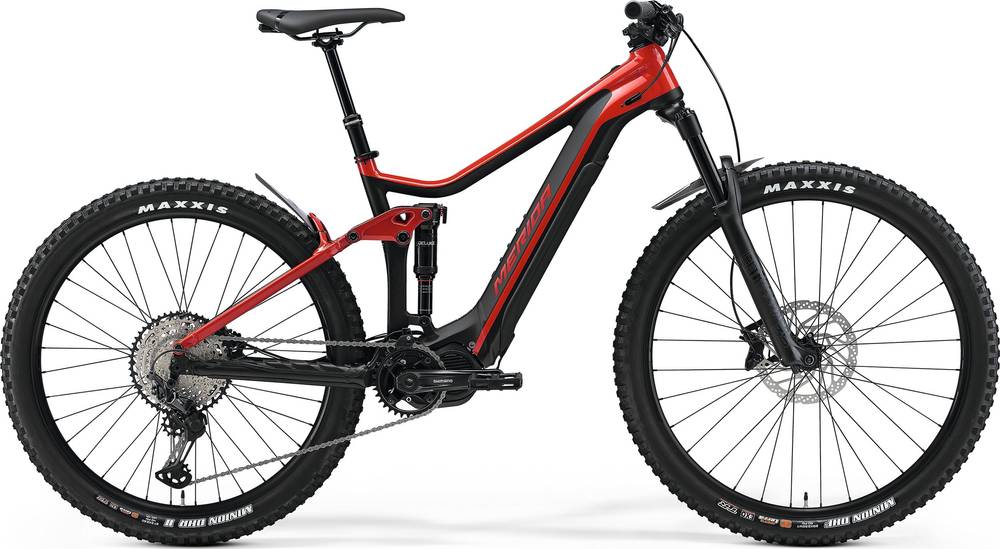

Merida eONE-FORTY LIMITED-EDITION 2020
2020 E-bike
Estimate price |
5,754$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Fork RockShox 35 Gold RL -
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8035, 504Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE, material: aluminium
Suspension Fork
Rock Shox 35 Gold RL, Air
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+
Shift Levers
Shimano SLX 12
Cassette
Shimano M7100, 10-51 teeth
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
included
Chain
CN-M7100
Wheels
Rims
MERIDA COMP TR, 29mm inner width
Tires
Maxxis DHF / Maxxis DHR II
Brakes
Brakes
Shimano MT-520 / Shimano MT-500
Disk Rotors
Shimano RT30 / Shimano RTEM300
Cockpit
Handlebar
MERIDA EXPERT eTR, material: aluminium
Headset
Merida 1901
Seat
Seatpost
MERIDA COMP TR, 30.9mm diameter
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 792 mm | 818 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm | 48 mm |
| Trail | 103 mm | 103 mm | 103 mm | 102 mm | 102 mm |
| Stack | 627 mm | 631.5 mm | 636 mm | 649.5 mm | 663 mm |
| Reach | 415 mm | 434.5 mm | 454.5 mm | 474.5 mm | 494.5 mm |
| Top Tube Length | 565.5 mm | 586.5 mm | 607.5 mm | 631 mm | 654.5 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1165 mm | 1187 mm | 1209 mm | 1235 mm | 1261 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
eONE-FORTY LIMITED-EDITION belongs to the Merida E Eone Forty model. 32 e-bikes variations carry this model name so far. You can easily view all of the Merida E Eone Forty e-bikes models from 2020, here.
Model range prices
Merida eONE-FORTY LIMITED-EDITION 2020 is the most affordable e-bike of this model and has a price of 5231$. On the other hand, Merida eONE-FORTY 9000 2020, is the most expensive and costs 8515$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Merida eONE-FORTY LIMITED-EDITION price was 5231$. If we compare this with the average Enduro e-bike cost we notice that the price is 9.32% higher.
Overview of components
Fork
The eONE-FORTY LIMITED-EDITION comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The eONE-FORTY LIMITED-EDITION 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The eONE-FORTY LIMITED-EDITION has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
