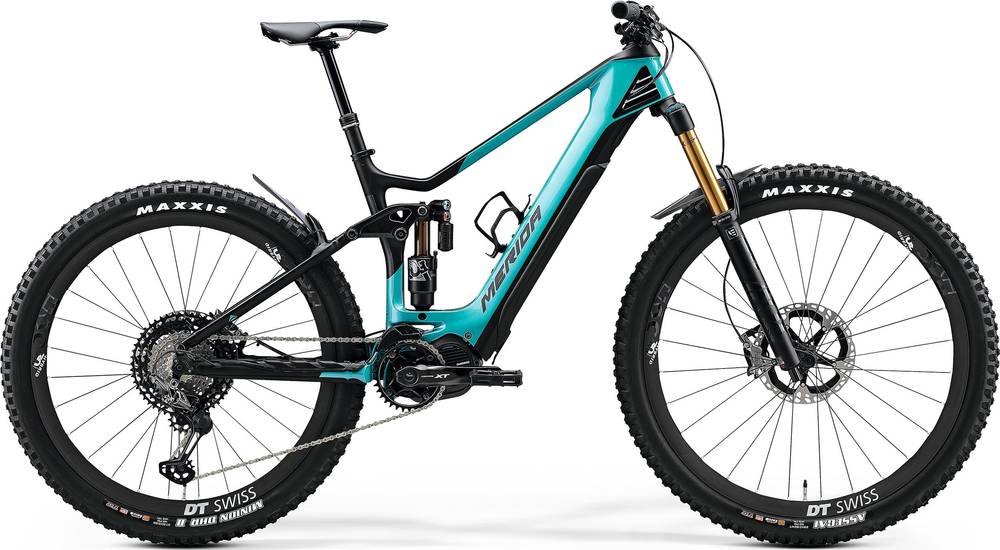

Merida eONE-SIXTY 10K 2020
2020 E-bike
Estimate price |
12,713$
Weight | 22.09 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano 2xE8035, 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Suspension Fork
FOX 36 Factory E-Bike+, Air, 160mm suspension travel, Tapered, 51mm fork offset
Rear Shock
FOX Factory Float X2
Drivetrain
Rear Derailleur
Shimano XTR Shadow+
Shift Levers
Shimano SL -MT800-IL / Shimano XTR
Cassette
Shimano M9100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth, Shimano FC-M8050
Bottom Bracket
included
Chain
CNM9100
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
DT Swiss Spline HXC 1200 spline 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Assegai / Maxxis DHR II
Brakes
Brakes
Shimano XTR
Disk Rotors
Shimano RT-MT900 / Shimano RT-EM910
Cockpit
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Headset
MERIDA 1901
Seat
Saddle
Prologo PROXIM W650
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano 2xE8035, 504Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm |
| Front Center | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 643.5 mm | 657.5 mm | 671 mm |
| Reach | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 611 mm | 634.5 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1218 mm | 1244 mm | 1270 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
eONE-SIXTY 10K completes the Merida E Eone Sixty model. Merida released 43 e-bikes variations of this model so far. You can easily view all of the Merida E Eone Sixty e-bikes models from 2020, here.
Model range prices
The most economical model, the Merida eONE-SIXTY 500 SE 2020 has a starting price of 4683$. Merida eONE-SIXTY 10K 2020 on the other hand is the most expensive at 11556$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Merida eONE-SIXTY 10K price was 11556$. Comparing the average cost of an Enduro e-bike to this one, you will see that eONE-SIXTY 10K price is 141.5% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida eONE-SIXTY 10K it’s weighing 22.09 kg (48.7 lbs). At this weight, is a bit lighter than average. In other words, this model is 6.02% lighter than the average Enduro e-bike.
eONE-SIXTY 10K components
Fork
Merida eONE-SIXTY 10K 2020 e-bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The eONE-SIXTY 10K has a rear shock with a travel of 150mm. The model FOX Factory Float X2 is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The eONE-SIXTY 10K 2020 e-bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eONE-SIXTY 10K comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the eONE-SIXTY 10K. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
