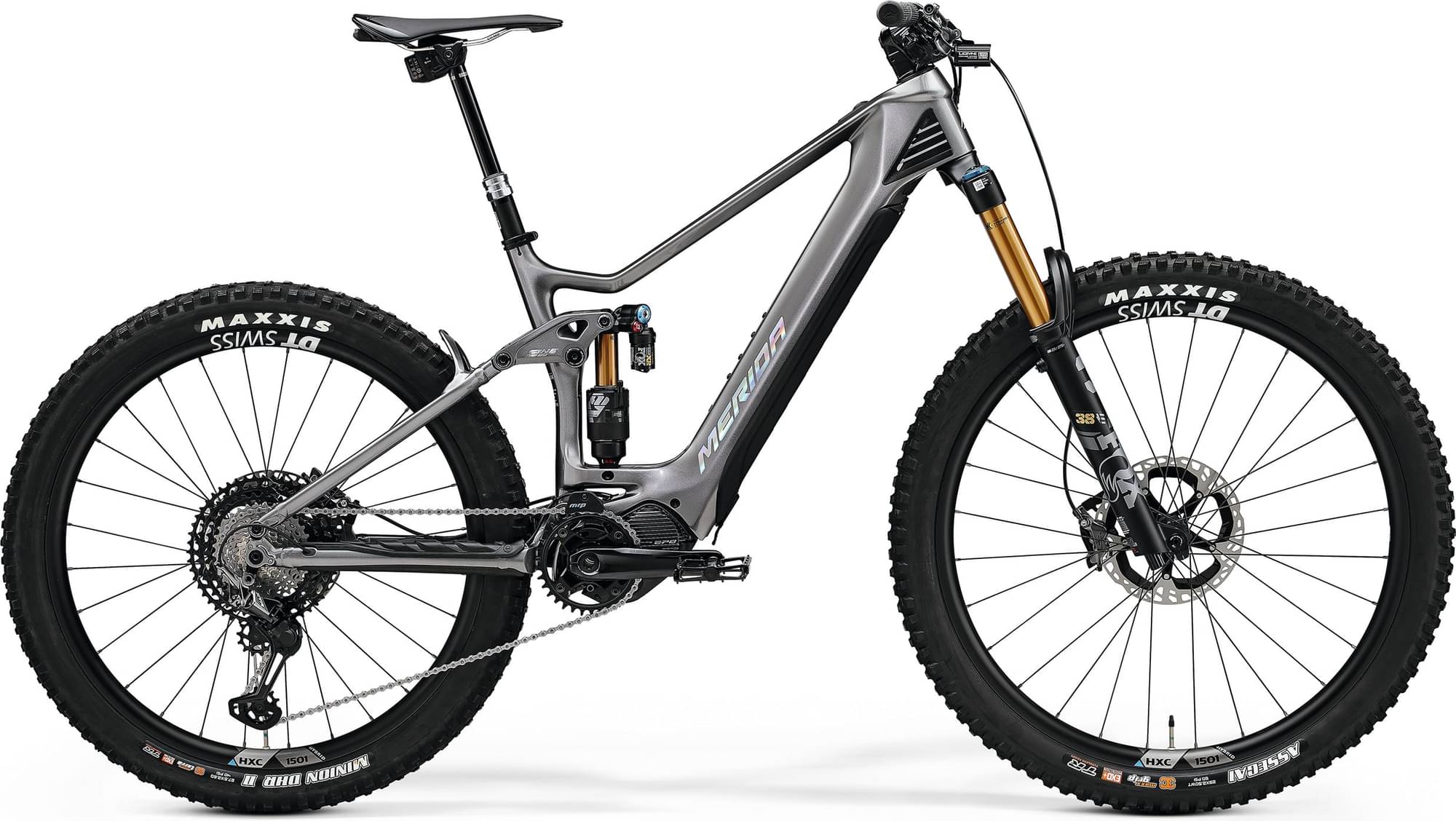

Merida eONE-SIXTY 10K 2022
2022 E-bike
Estimate price |
13,383$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036 630Wh / Shimano E8035 504Wh for XS only -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
FOX 38 Factory eMTB+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Factory Float X2, platform
Drivetrain
Rear Derailleur
Shimano XTR Shadow+
Shift Levers
Rock Shox AXS Controller / Shimano XTR
Cassette
Shimano M9100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Wheels
Front Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
Rims
DT Swiss Spline HXC1501 spline 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
Shimano XTR, 4 piston
Disk Rotors
Shimano RT-MT900 / Shimano RT-EM910, 203 mm
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
Rock Shox Reverb AXS, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh / Shimano E8035 504Wh for XS only
Remote
Shimano SC-EM800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm |
| Front Center | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm | 120 mm |
| Stack | 643.5 mm | 657.5 mm | 671 mm |
| Reach | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 611 mm | 635 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1218 mm | 1244 mm | 1271 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm |
| Standover Height | 739 mm | 746 mm | 760 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
eONE-SIXTY 10K is a Merida E Eone Sixty model. 43 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Merida eONE-SIXTY 500 2022 is the cheapest e-bike model and costs 5900$. Merida eONE-SIXTY 10K 2022 is the most expensive one and costs 12164$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 12164$. If we compare this with the average Enduro e-bike cost we notice that the price is 154.21% higher.
Overview of components
Fork
The eONE-SIXTY 10K comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The eONE-SIXTY 10K has a rear shock with a travel of 150mm. The model FOX Factory Float X2 is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Merida eONE-SIXTY 10K 2022, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eONE-SIXTY 10K is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Merida model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
