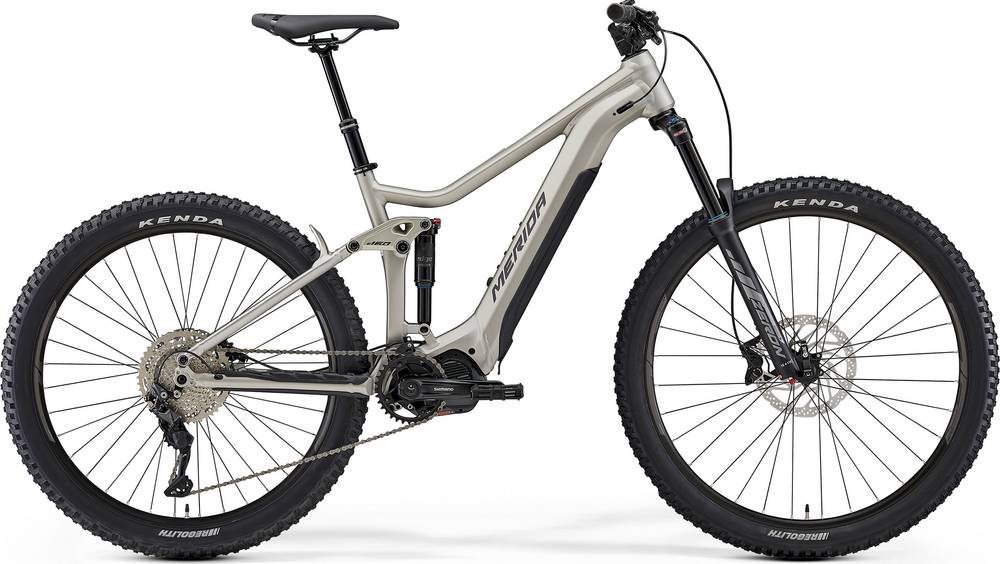

Merida eONE-SIXTY 300S 2021
2021 E-bike
Estimate price |
5,085$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork SunTour Zeron
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8035 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY Lite II, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Suspension Fork
Suntour ZERON 35-Boost LOR, Air, 150mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Rear Shock
SUNTOUR RS EDGE R
Drivetrain
Rear Derailleur
Shimano Deore RDM5120 10
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M4100-RC1 clamp band 10
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Kenda Regolith, 29x2.4", wire
Brakes
Brakes
Shimano M4100, 4 piston, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 203 mm, 180 mm
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA COMP CC, V-mount
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8035 504Wh
Remote
Shimano SC-E5000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 729 mm | 751 mm | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 634 mm | 638 mm | 643 mm | 657 mm | 670 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 568 mm | 589 mm | 610 mm | 634 mm | 657 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1173 mm | 1195 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 742 mm | 741 mm | 739 mm | 760 mm | 782 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
eONE-SIXTY 300S belongs to the Merida E Eone Sixty model. Merida launched 43 e-bikes of this model so far. You can easily view all of the Merida E Eone Sixty e-bikes models from 2021, here.
Model range prices
The most economical model, the Merida eONE-SIXTY 300S 2021 has a starting price of 4622$. Merida eONE-SIXTY 10K 2021 on the other hand is the most expensive at 10948$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Merida released this model in 2021, its price was 4622$. Comparing the average cost of an Enduro e-bike to this one, you will see that eONE-SIXTY 300S price is 3.53% lower.
Overview of components
Fork
This e-bike has the SunTour Zeron fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Merida eONE-SIXTY 300S e-bike has the SUNTOUR RS EDGE R model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The eONE-SIXTY 300S 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Merida eONE-SIXTY 300S e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the eONE-SIXTY 300S. Therefore, climbing or descending will be a breeze.
