Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork SunTour AION
-
Groupset Deore, SLX -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY
Suspension Fork
Suntour-AION35 LOR,Air, 160mm suspension travel, Tapered
Rear Shock
Suntour TRIAir 3CR
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
no
Shift Levers
no / Shimano SLX 11
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Chain
KMC e11T
Chain Guide
N/A
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 36 spoke holes, Centerlock
Rims
MERIDA Expert TP, 38mm inner width
Spokes
Black stainless
Tires
Maxxis DHR II, 27.5x2.8 ", fold, 3C EXO TR
Brakes
Brakes
Shimano MT-500
Brake Levers
attached
Cockpit
Stem
Merida Expert eTR, 35mm diameter, 0° stem angle
Handlebar
MERIDA Expert eTR, 780mm width, 20mm rise
Grips
Merida Expert EC
Headset
FSA NO.57/55E neck, 2191025712
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0 SB, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 735 mm | 763 mm | 791 mm | 819 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 601 mm | 619 mm | 637 mm | 656 mm |
| Reach | 413 mm | 433 mm | 453 mm | 473 mm |
| Top Tube Length | 576 mm | 601 mm | 627 mm | 651 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1167 mm | 1195 mm | 1223 mm | 1251 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 717 mm | 720 mm | 750 mm | 782 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

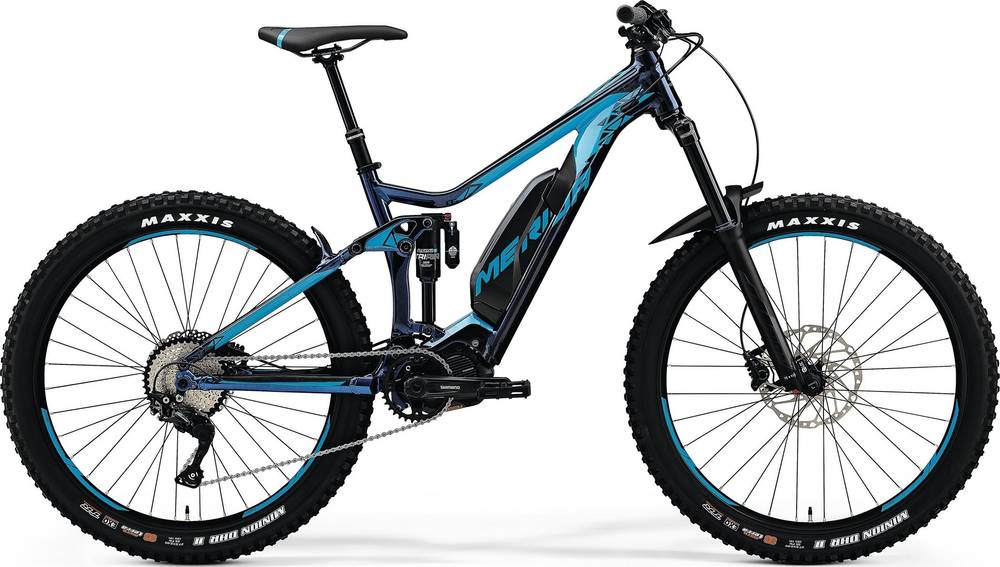

Model Overview
eONE-SIXTY 500 completes the Merida E Eone Sixty model. 43 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
eONE-SIXTY 500 weighs 23.54 kg (51.9 lbs) and is slightly heavier than the average. In short, the average Enduro e-bike weight is 0.51% lower than this one.
eONE-SIXTY 500 components
Fork
The fork installed on this bike is the SunTour AION model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Merida eONE-SIXTY 500 e-bike has the Suntour TRIAir 3CR model installed, and has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on eONE-SIXTY 500 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eONE-SIXTY 500 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Merida eONE-SIXTY 500 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Merida eONE-SIXTY 500 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
