Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery, 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Float X Performance, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano SL -MT500-IL / Shimano DEORE M6100 12
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Pedals
VP VPE-527
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
Shimano SLX, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M/L 150mm travel seatpost - XL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Front Center | 751 mm | 773 mm | 795 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 120 mm | 120 mm | 120 mm | 121 mm |
| Stack | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 418 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 582 mm | 603 mm | 624 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1210 mm | 1232 mm | 1254 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 734 mm | 731 mm | 737 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

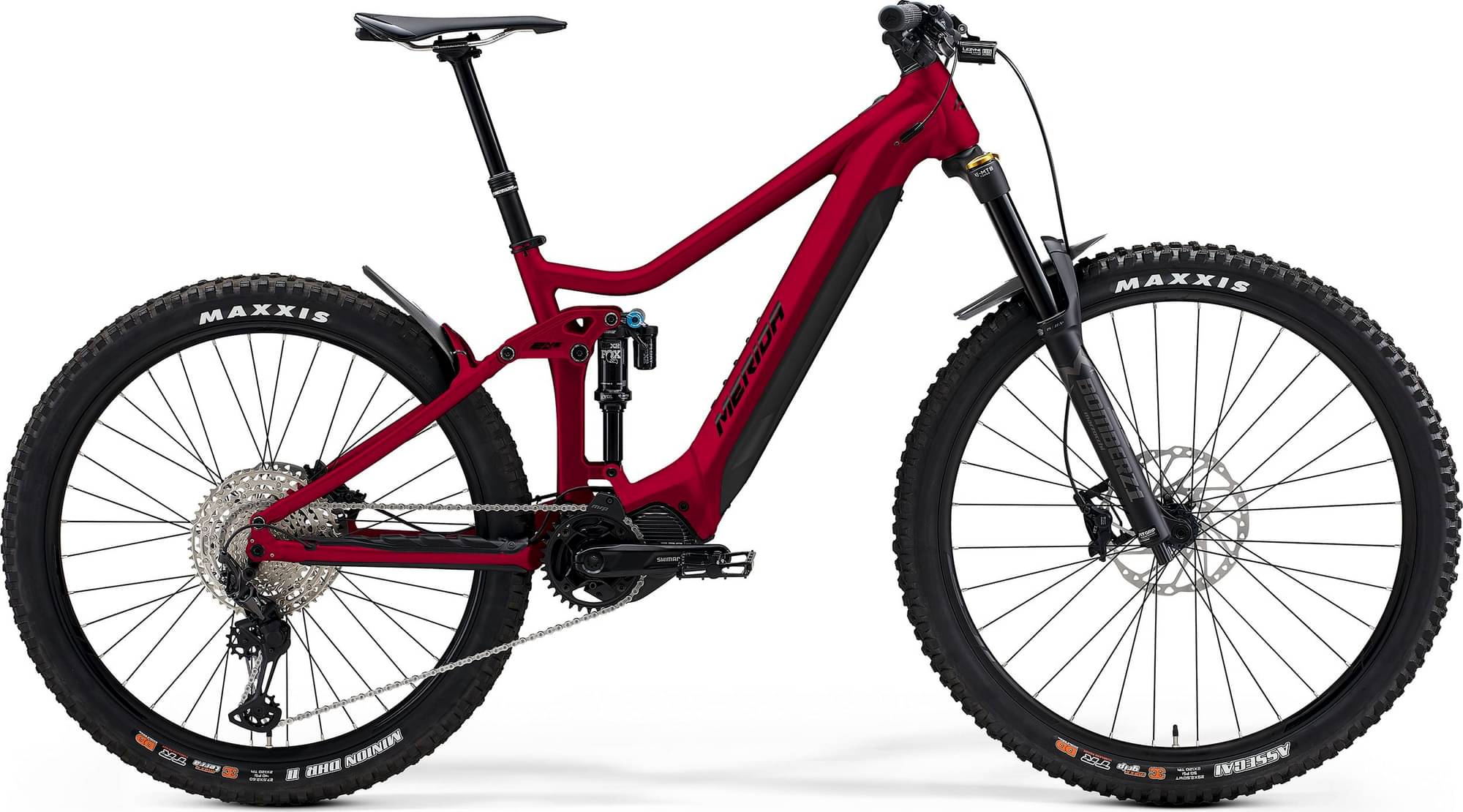

eONE-SIXTY 775 (EP6) completes the Merida E Eone Sixty model. Merida released 58 e-bikes variations of this model so far. Take a sneak peek at all Merida E Eone Sixty e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Merida eONE-SIXTY 500 (EP6) 2023 has a starting price of 5359$. Merida eONE-SIXTY 10K 2023 on the other hand is the most expensive at 12178$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
eONE-SIXTY 775 (EP6) components
Fork
Merida eONE-SIXTY 775 (EP6) 2023 e-bike is equipped with the Marzocchi Bomber Z1 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float X Performance model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the eONE-SIXTY 775 (EP6) model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Merida eONE-SIXTY 775 (EP6) includes a dropper post. Therefore, climbing or descending will be a breeze.
