Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY
Suspension Fork
Rock Shox Yari RC B Boost
Rear Shock
Rock Shox Super Deluxe R-A2
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Front Derailleur
N/A
Shift Levers
Shimano SLX 11
Cassette
Shimano SLX, 11 speed, 11-46 teeth
Crank
Shimano CRE80-B 34
Chain
KMC X11e
Chain Guide
N/A
Pedals
VP Components, VPE-537
Wheels
Front Hub
15mm front hub, Shimano Deore, Boost standard centrelock rear
Rear Hub
15mm front hub, Shimano Deore, Boost standard centrelock rear
Rims
MERIDA EXPERT TP
Spokes
Black stainless
Tires
Maxxis DHR II 27.5" x 2.8"
Brakes
Brakes
Shimano SLX hydraulic disc brakes with 203mm rotors
Brake Levers
attached
Cockpit
Stem
Merida Expert SS, 45mm length
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Headset
FSA NO.57/55E neck
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA EXPERT Dropper 30.9mm
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 735 mm | 763 mm | 791 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 601 mm | 619 mm | 637 mm |
| Reach | 413 mm | 433 mm | 453 mm |
| Top Tube Length | 576 mm | 601 mm | 627 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 430 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1167 mm | 1195 mm | 1223 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 717 mm | 720 mm | 750 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

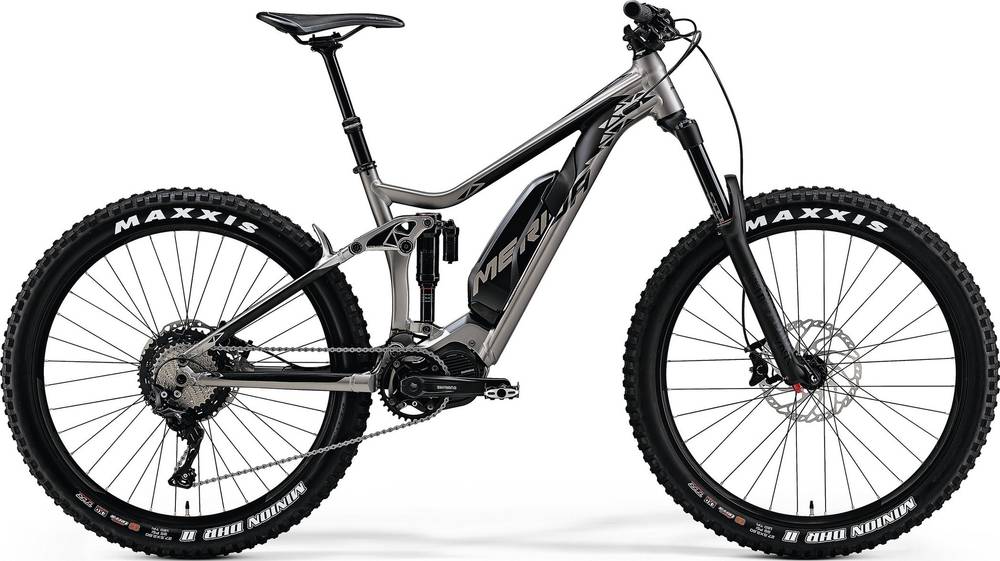

eONE-SIXTY 800 belongs to the Merida E Eone Sixty model. Merida released 43 e-bikes variations of this model so far. Take a sneak peek at all Merida E Eone Sixty e-bikes models from 2018, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
eONE-SIXTY 800 weighs 22.25 kg (49.05 lbs) and is a bit lighter than the average. To sum up, it’s 5.26% lighter than the average weight of Enduro e-bikes.
Overview of components
Fork
Merida eONE-SIXTY 800 2018 e-bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Super Deluxe R-A2 model, with a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Merida eONE-SIXTY 800 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eONE-SIXTY 800 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Merida model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
