Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY
Suspension Fork
Rock Shox Lyric RC B SoloAir 160mm travel DFBS 51T
Rear Shock
Rock Shox Super Deluxe R-A2
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Front Derailleur
N/A
Shift Levers
Shimano XT 11
Cassette
Shimano XT, 11 speed, 11-46 teeth
Crank
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Chain
KMC X11e
Chain Guide
Shimano SM-CDE 80
Pedals
VP Components, VPE-537
Wheels
Front Hub
DT Swiss DT350 boost
Rear Hub
DT Swiss DT350 boost
Rims
MERIDA EXPERT TP
Spokes
Black stainless
Tires
Maxxis DHR II 27.5" x 2.8"
Brakes
Brakes
Shimano XT hydraulic disc brakes with Ice-tech cooling, 203mm centrelock rotors
Brake Levers
attached
Cockpit
Stem
Merida Expert SS, 45mm length
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Headset
FSA NO.57/55E neck
Seat
Saddle
MERIDA EXPERT
Seatpost
MERIDA EXPERT Dropper 30.9mm
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 735 mm | 763 mm | 791 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 601 mm | 619 mm | 637 mm |
| Reach | 413 mm | 433 mm | 453 mm |
| Top Tube Length | 576 mm | 601 mm | 627 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 430 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1167 mm | 1195 mm | 1223 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 717 mm | 720 mm | 750 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

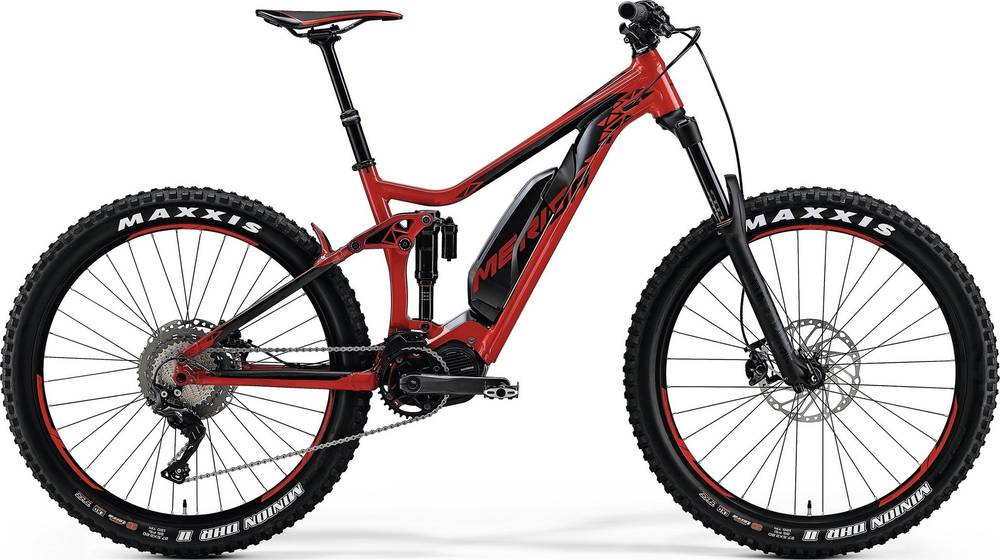

eONE-SIXTY 900 is a Merida E Eone Sixty model. Merida launched 43 e-bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 22.15 kg (48.83 lbs), Merida e-bike is a bit lighter than average. In conclusion, the average Enduro e-bike weighs 5.73% more than eONE-SIXTY 900.
eONE-SIXTY 900 components
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Super Deluxe R-A2 model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The eONE-SIXTY 900 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Merida model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
