Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY
Suspension Fork
FOX 36 Factory E-BIKE, Air, 160mm suspension travel, Tapered
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano XT Di2
Front Derailleur
no
Shift Levers
no / Shimano XT Di2
Cassette
Shimano M8000, 11-46 teeth, 11 speed
Crank
Shimano CRE80-B, 34 teeth
Chain
KMC e11T
Wheels
Rims
DT Swiss Spline HX1501, 110x15mm width front hub, 148x12mm width rear hub, 35mm inner width, Centerlock
Spokes
attached
Tires
Maxxis DHR II, 27.5x2.8 ", fold, 3C EXO TR
Brakes
Brakes
Shimano SAINT
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert eTR, 780mm width, 20mm rise
Headset
FSA NO.57/55E neck, 2191025712
Seat
Saddle
MERIDA Expert CC
Seatpost
Rock Shox Reverb, 30.9mm diameter, 0mm setback, 100mm travel seatpost - M/L/XL 150mm travel seatpost
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm | 1.39 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 735 mm | 763 mm | 791 mm | 819 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 601 mm | 619 mm | 637 mm | 656 mm |
| Reach | 413 mm | 433 mm | 453 mm | 473 mm |
| Top Tube Length | 576 mm | 601 mm | 627 mm | 651 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1167 mm | 1195 mm | 1223 mm | 1251 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 717 mm | 720 mm | 750 mm | 782 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

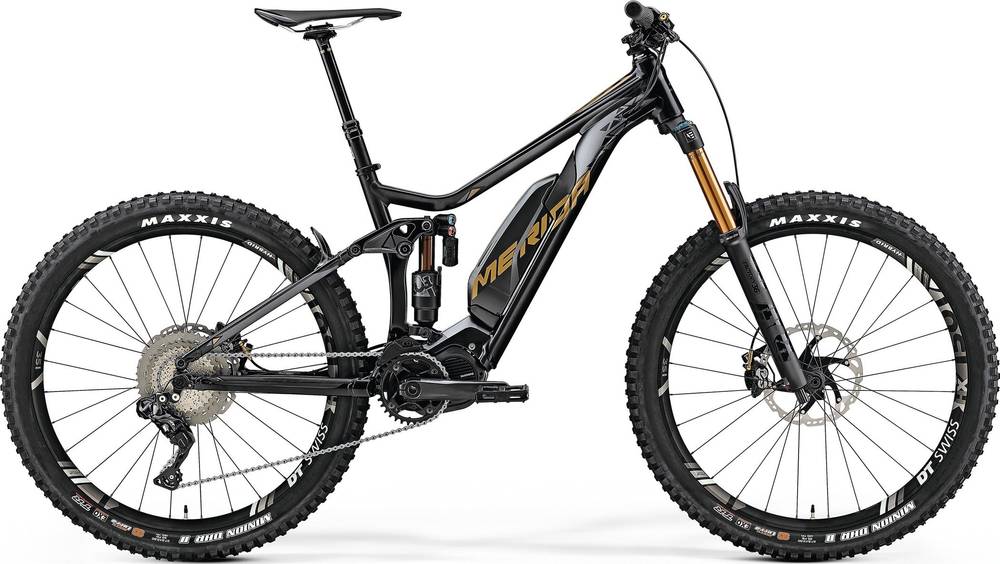

Model Overview
eONE-SIXTY 900E is a Merida E Eone Sixty model. There are 43 e-bikes that carry this model name. You can easily view all of the Merida E Eone Sixty e-bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida eONE-SIXTY 900E it’s weighing 22.66 kg (49.96 lbs). At this weight, is slightly lighter than average. In short, the average Enduro e-bike weight is 3.35% higher than this one.
eONE-SIXTY 900E components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The eONE-SIXTY 900E 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eONE-SIXTY 900E comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Merida eONE-SIXTY 900E includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
