Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike RCT3
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-TWENTY
Suspension Fork
Rock Shox Pike RCT3, 130mm travel, B Boost
Rear Shock
Rock Shox Deluxe RT-A2
Drivetrain
Rear Derailleur
Shimano XT Di2 RD-M8050
Front Derailleur
N/A
Shift Levers
Shift Switch XT Di2
Cassette
Shimano XT, 11 speed, 11-46 teeth
Crank
Shimano CRE80-B 34, SM-CDE 80 Chainguide
Chain
KMC X11e
Chain Guide
Shimano SM-CDE 80
Pedals
VP Components, VPE-537
Wheels
Front Hub
DT Swiss HX 1501, Boost front and rear
Rear Hub
DT Swiss HX 1501, Boost front and rear
Rims
DT Swiss HX1501 Spline one 35 boost wheelset
Spokes
DT Swiss
Tires
Maxxis DHR 27.5"+ 2.8" folding / Maxxis Rekon 27.5"+ 2.8" folding
Brakes
Brakes
Shimano XT hydraulic disc brakes with Ice-tech cooling, 203mm 6 bolt rotors
Brake Levers
attached
Cockpit
Stem
Merida Expert SS, 55mm length
Handlebar
MERIDA EXPERT II 780mm, rise: 20 mm, dia: 35mm, 6°
Headset
FSA NO.55EP neck
Seat
Saddle
MERIDA EXPERT
Seatpost
Rock Shox Reverb Stealth 30.9mm
Motor & Battery
Motor
Shimano [E8000]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.423 mm | 1.38 mm | 1.341 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Front Center | 717 mm | 736 mm | 760 mm | 783 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 609 mm | 619 mm | 628 mm | 637 mm |
| Reach | 420 mm | 435 mm | 455 mm | 475 mm |
| Top Tube Length | 583 mm | 601 mm | 623 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1155 mm | 1174 mm | 1198 mm | 1221 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 698 mm | 730 mm | 751 mm | 783 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

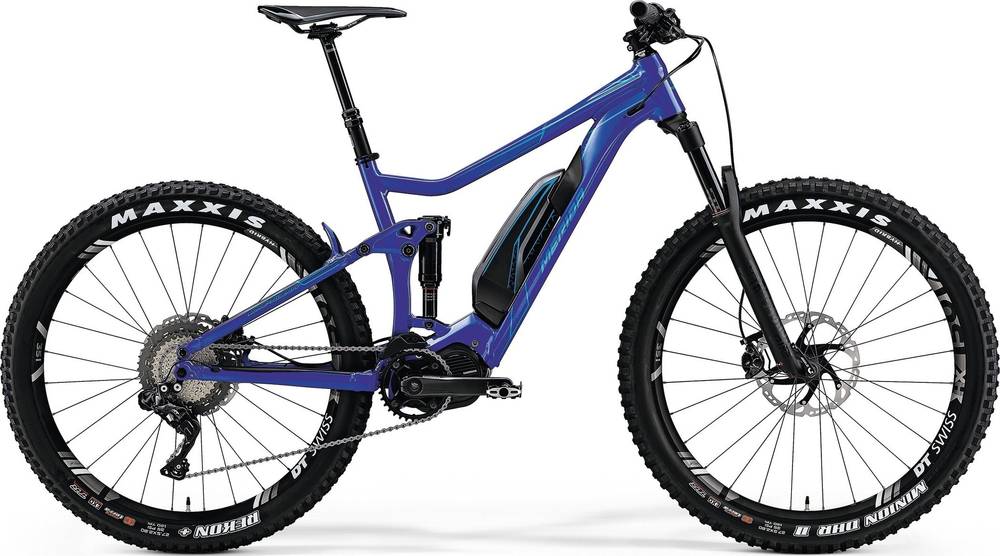

Model Overview
eONE-TWENTY 900E completes the Merida E Eone Twenty model. Merida released 15 e-bikes variations of this model so far. You can easily view all of the Merida E Eone Twenty e-bikes models from 2018, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eONE-TWENTY 900E weighs 21.4 kg (47.18 lbs) and is considerably lighter than the average. To sum up, it’s 10.75% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
This e-bike has the RockShox Pike RCT3 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Merida eONE-TWENTY 900E e-bike has the Rock Shox Deluxe RT-A2 model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the eONE-TWENTY 900E e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eONE-TWENTY 900E comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Merida eONE-TWENTY 900E e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Merida eONE-TWENTY 900E includes a dropper post. Therefore, climbing or descending will be a breeze.
