Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L
Suspension Fork
Suntour NEX-PM-DS
Drivetrain
Rear Derailleur
Shimano Altus RDM2000
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG300, 9 speed, 12-36 teeth
Crank
Shimano CRE60 38
Chain
KMC X9
Wheels
Front Hub
Shimano TX505 centrelock
Rear Hub
Shimano TX505 centrelock
Rims
MERIDA 7 Comp CR
Spokes
Black stainless
Tires
Continental Ride Tour 42c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 15mm rise, 660mm wide
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA COMFORT
Seatpost
Merida Expert 15mm lay back, 31.6mm
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.69 mm | 1.69 mm |
| Front Center | 628 mm | 639 mm | 653 mm |
| Rake | 43 mm | 41 mm | 40 mm |
| Trail | 75 mm | 77 mm | 75 mm |
| Stack | 634 mm | 653 mm | 675 mm |
| Reach | 379 mm | 386 mm | 399 mm |
| Top Tube Length | 571 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1080 mm | 1091 mm | 1105 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 618 mm | 638 mm | 660 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

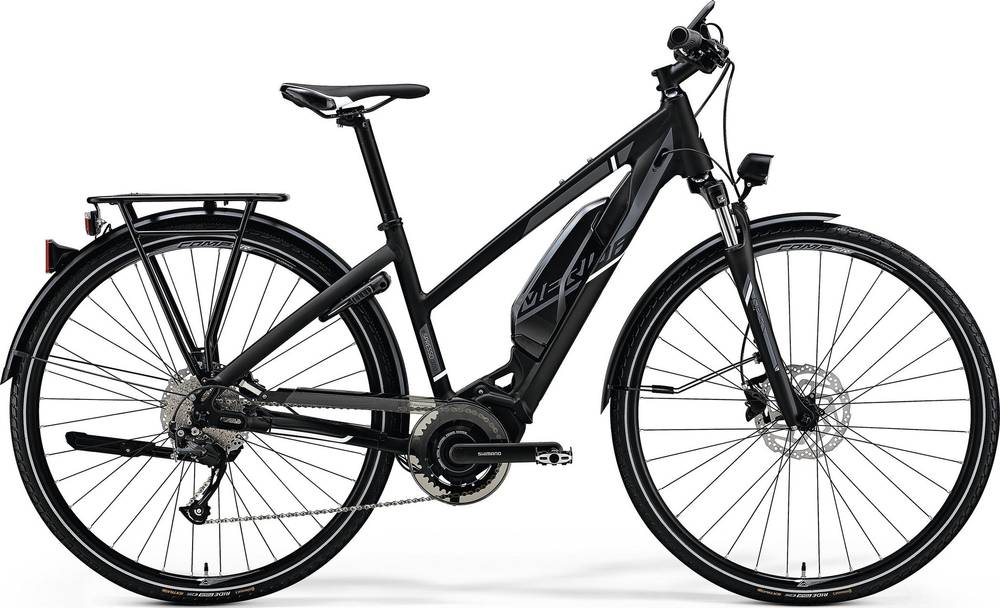

Model Overview
eSPRESSO 300 L EQ is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
eSPRESSO 300 L EQ weighs 23.1 kg (50.93 lbs) and is slightly lighter than the average. To sum up, it’s 2.99% lighter than the average weight of Hybrid e-bikes.
eSPRESSO 300 L EQ components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The eSPRESSO 300 L EQ 2018 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO 300 L EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
eSPRESSO 300 L EQ comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
