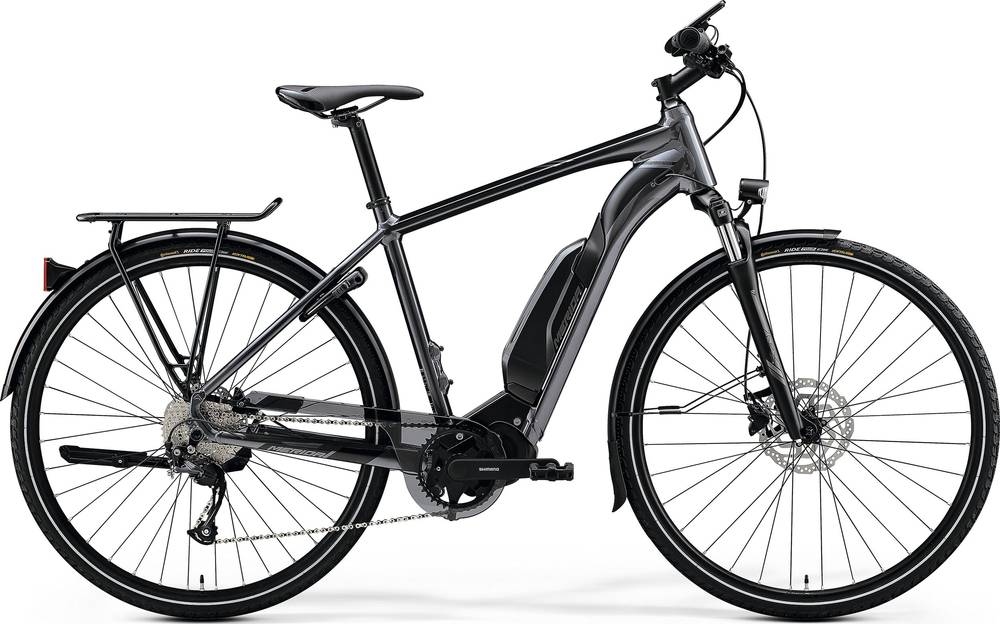

Merida eSPRESSO 300 SE EQ 2020
2020 E-bike
Estimate price |
3,145$
Weight | 22.36 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour NEX-PM-DS, Coil, 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano Altus RDM2000
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG400, 12-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
included
Chain
KMC e9S
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Continental RIDE TOUR
Brakes
Brakes
Shimano MT-200
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.64 mm | 1.67 mm |
| Front Center | 639 mm | 650 | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 72 mm | 72 mm | 68 mm |
| Stack | 640 mm | 655 mm | 676 mm |
| Reach | 393 mm | 399 mm | 406 mm |
| Top Tube Length | 582 mm | 592 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1107 mm | 1118 mm | 1126 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 794 mm | 829 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
eSPRESSO 300 SE EQ is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. Take a sneak peek at all Merida E Espresso e-bikes models from 2020, by clicking here.
Model range prices
Merida eSPRESSO 200 SE 2020 is the most affordable e-bike of this model and has a price of 2433$. On the other hand, Merida eSPRESSO 700 EQ 2020, is the most expensive and costs 4014$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2859$. Comparing this to the average Hybrid e-bike price, we see that the price is 15.28% more expensive.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eSPRESSO 300 SE EQ weighs 22.36 kg (49.3 lbs) and is a bit lighter than the average. In other words, this model is 6.4% lighter than the average Hybrid e-bike.
Overview of components
Fork
Merida eSPRESSO 300 SE EQ 2020 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Merida eSPRESSO 300 SE EQ 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO 300 SE EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
