Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8014, 418Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
SR Suntour NEX-PM-DS, Coil, 63mm suspension travel, 700x48C max wheelsize
Drivetrain
Rear Derailleur
Shimano Altus M2000, SGS
Shift Levers
Shimano Altus
Cassette
Shimano HG400, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Chain Guide
Sunnywheel SW-CG-173A
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Tour, 622x42", reflective stripe
Brakes
Brakes
Shimano MT200, 2 piston
Disk Rotors
Shimano RT10, 180 mm, 160 mm
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8014, 418Wh
Remote
Shimano SC-E5000A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.65 mm | 1.68 mm | 1.7 mm |
| Front Center | 635 mm | 639 mm | 650 | 658 mm | 679 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm | 68 mm | 68 mm |
| Stack | 623 mm | 634 mm | 649 mm | 670 mm | 698 mm |
| Reach | 381 mm | 387 mm | 393 mm | 400 mm | 411 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1097 mm | 1101 mm | 1112 mm | 1120 mm | 1141 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 719 mm | 753 mm | 788 mm | 823 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

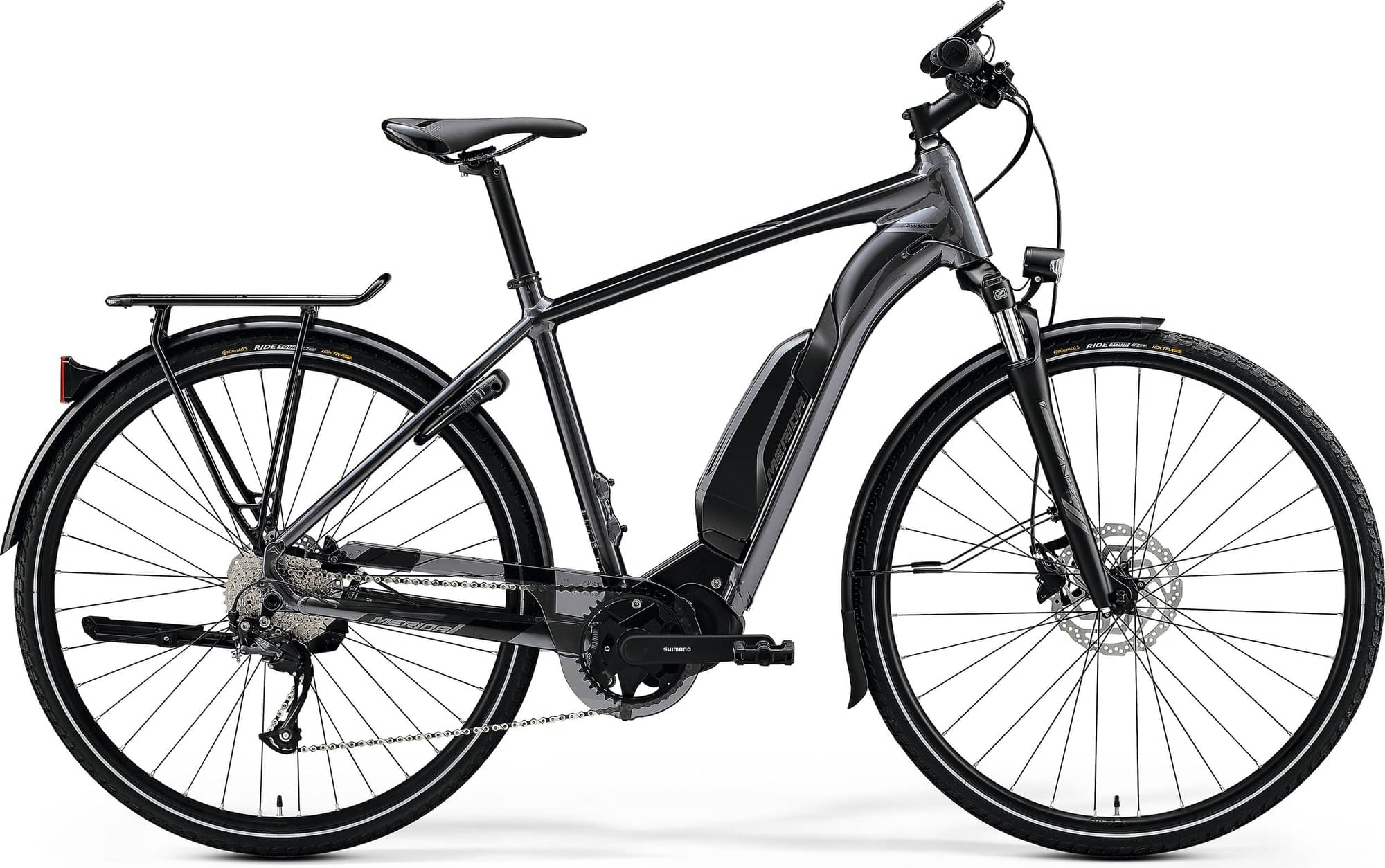

eSPRESSO 300 SE EQ 418Wh completes the Merida E Espresso model. 185 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Merida eSPRESSO 200 SE 2020 is the cheapest e-bike model and costs 2433$. Merida eSPRESSO 700 EQ 2020 is the most expensive one and costs 4014$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Merida eSPRESSO 300 SE EQ 418Wh 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO 300 SE EQ 418Wh has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
eSPRESSO 300 SE EQ 418Wh comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
