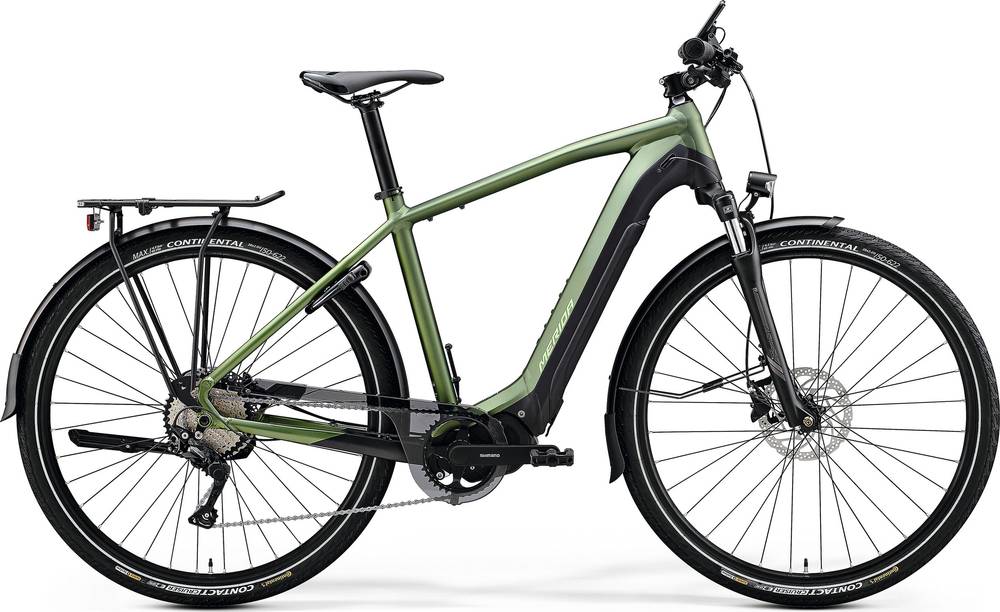

Merida eSPRESSO 400 EQ 2020
2020 E-bike
Estimate price |
3,680$
Weight | 24.42 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8035, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE II, material: aluminium, 700C wheelsize, 142x12mm axle standard, intube, max. 504 Wh
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE50, 38 teeth, Shimano FC-E5010
Bottom Bracket
included
Chain
KMC e10S
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Continental Contact Cruiser
Brakes
Brakes
Shimano MT-200
Disk Rotors
Shimano RT30 / Shimano RTEM300
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.59 mm | 1.61 mm | 1.63 mm |
| Front Center | 649 mm | 660 mm | 669 mm | 690 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 74 mm | 74 mm | 70 mm | 70 mm |
| Stack | 639 mm | 653.5 mm | 674.5 mm | 703 mm |
| Reach | 405 mm | 411 mm | 419 mm | 431 mm |
| Top Tube Length | 582 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1120 mm | 1131 mm | 1140 mm | 1161 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 760 mm | 795 mm | 830 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
eSPRESSO 400 EQ belongs to the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can easily view all of the Merida E Espresso e-bikes models from 2020, here.
Model range prices
Merida eSPRESSO 200 SE 2020 is the most affordable e-bike of this model and has a price of 2433$. On the other hand, Merida eSPRESSO 700 EQ 2020, is the most expensive and costs 4014$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Merida eSPRESSO 400 EQ price was 3345$. Doing a quick comparison, we notice that eSPRESSO 400 EQ price is 34.88% more expensive than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.42 kg (53.84 lbs), Merida e-bike is slightly heavier than average. In short, the average Hybrid e-bike weight is 2.65% lower than this one.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the eSPRESSO 400 EQ model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO 400 EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
