Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE IV, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12 mm axle standard, intube
Suspension Fork
SR Suntour NEX E25, Coil, 63 mm suspension travel, 700x52C max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG300, 11-48 teeth, 10 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise
Headset
MERIDA 8156
Seat
Saddle
MERIDA EXPERT TK II, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.565 mm | 1.583 mm | 1.594 mm | 1.613 mm | 1.633 mm |
| Front Center | 677 mm | 676 mm | 687 mm | 696 mm | 719 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 87 mm | 84 mm | 84 mm | 81 mm | 80 mm |
| Stack | 640 mm | 649 mm | 663 mm | 684 mm | 712 mm |
| Reach | 409 mm | 410 mm | 416 mm | 424 mm | 436 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 133 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1145 mm | 1144 mm | 1155 mm | 1164 mm | 1187 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 733 mm | 768 mm | 802 mm | 836 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

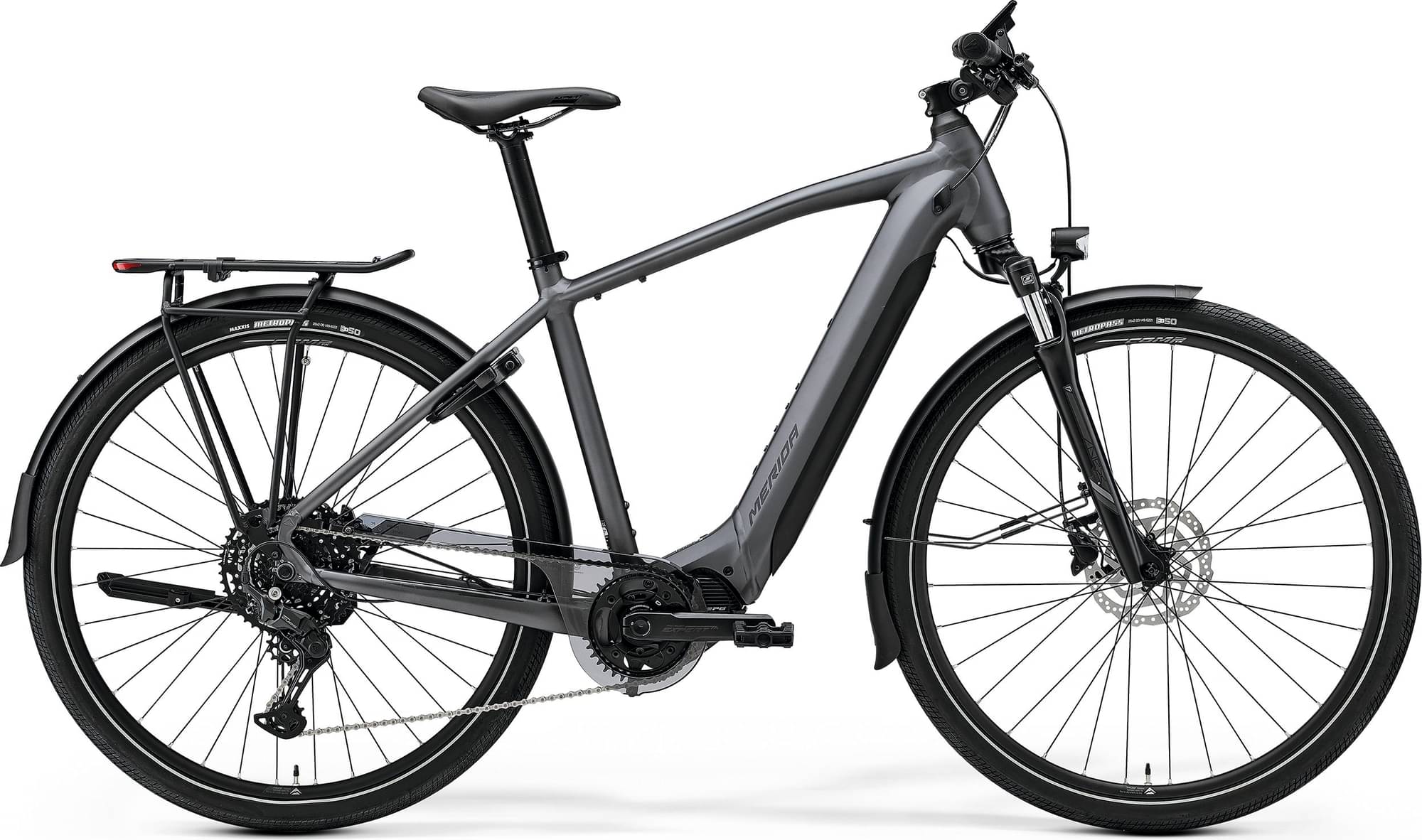

eSPRESSO 500 EQ is part of the Merida E Espresso model. There are 204 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
eSPRESSO 500 EQ components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The eSPRESSO 500 EQ 2024 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO 500 EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
