Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Nexus, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E8010 500Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO
Suspension Fork
Suntour NEX-PM-DS-63mm travel
Drivetrain
Shift Levers
Shimano Nexus REVOSHIFT
Cassette
Shimano Gear 21
Crank
Shimano CRE60 38
Chain
KMC X1
Wheels
Front Hub
Shimano TX505 centrelock front / Shimano 7 speed rear
Rear Hub
Shimano TX505 centrelock front / Shimano 7 speed rear
Rims
MERIDA 7 Comp CR
Spokes
Black stainless
Tires
Continental Ride Tour 42c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert Oversize clamp, 15mm rise, 660mm wide
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA COMFORT
Seatpost
Merida Expert 15mm lay back, 31.6mm
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E8010 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.65 mm | 1.65 mm | 1.72 mm |
| Front Center | 628 mm | 638 mm | 653 mm | 668 mm |
| Rake | 43 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 68 mm | 65 mm |
| Stack | 630 mm | 630 mm | 652 mm | 692 mm |
| Reach | 375 mm | 382 mm | 395 mm | 403 mm |
| Top Tube Length | 567 mm | 577 mm | 597 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1076 mm | 1086 mm | 1101 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 1113 mm | 1154 mm | 1198 mm | 1244 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

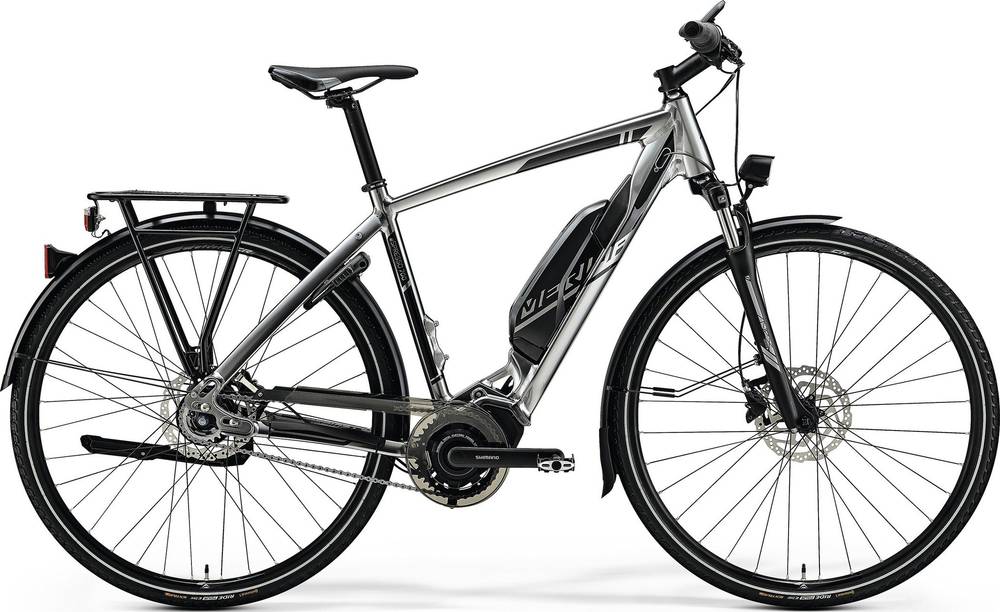

eSPRESSO 700 EQ is a Merida E Espresso model. Merida launched 185 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Merida eSPRESSO 700 EQ 2018 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on eSPRESSO 700 EQ are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
