Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN805-L 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9 mm axle standard, internal
Suspension Fork
SR Suntour NVX30 DS, Coil, 80 mm suspension travel, 27,5x2,4" max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano CUES U4000
Cassette
Shimano LG300, 11-46 teeth, 9 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm- XS/S/M/L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise
Headset
MERIDA 8254
Seat
Saddle
MERIDA EXPERT TK II, V-mount
Seatpost
JD SP79, 30.9 mm diameter, 15 mm setback, 40 mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN805-L 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.657 mm | 1.597 mm | 1.552 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 656 mm | 661 mm | 666 mm | 675 mm |
| Reach | 385 mm | 399 mm | 417 mm | 435 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1129 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 403 mm | 403 mm | 402 mm | 402 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

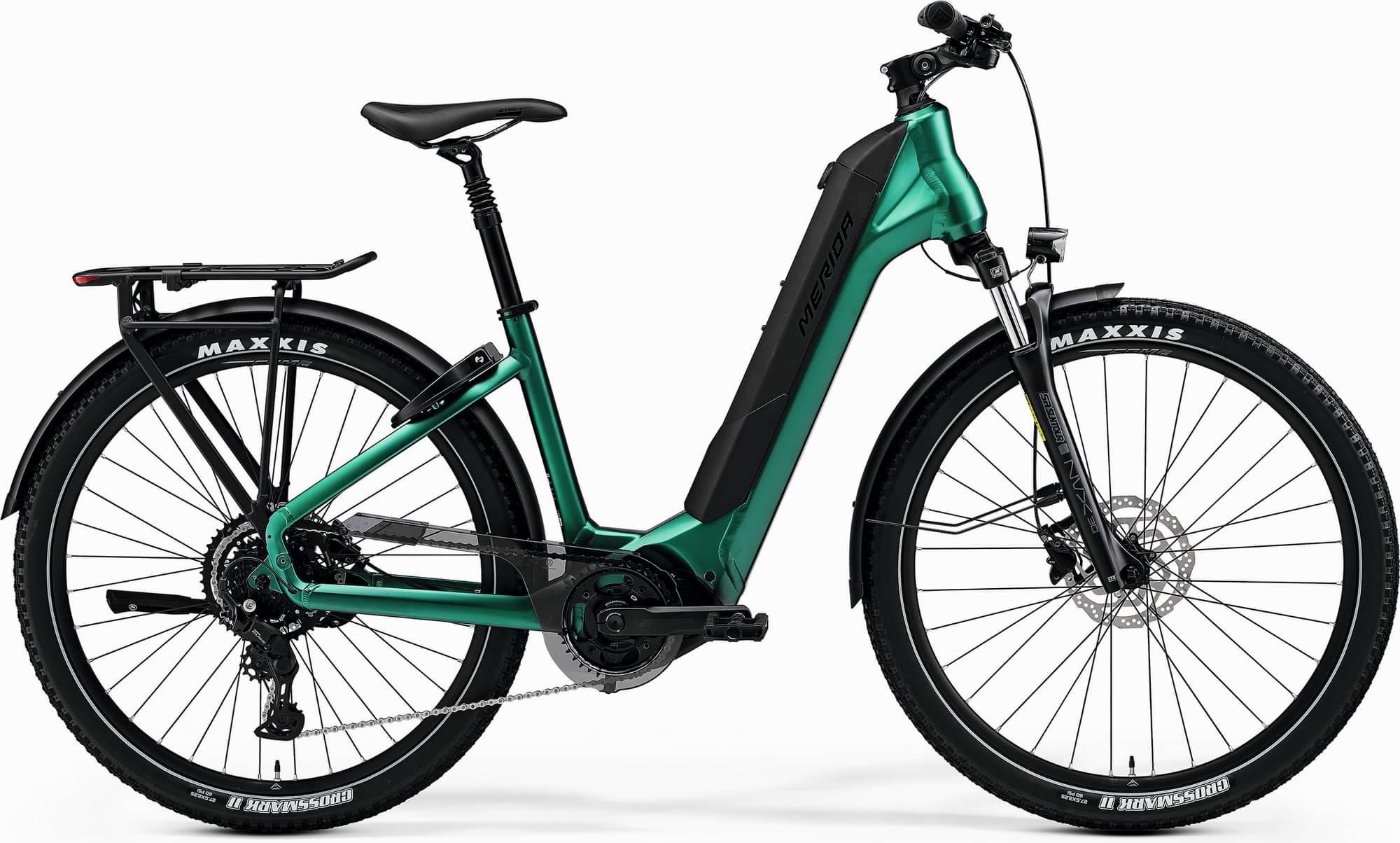

eSPRESSO CC 400 EQ completes the Merida E Espresso model. Merida released 204 e-bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Merida eSPRESSO CC 400 EQ 2024 e-bike is equipped with the Suntour NVX fork, and has 80mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida eSPRESSO CC 400 EQ 2024, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO CC 400 EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
eSPRESSO CC 400 EQ comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
