Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery 750Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9 mm axle standard, internal
Suspension Fork
SR Suntour NVX30 DS, Coil, 80 mm suspension travel, 27,5x2,4" max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG300, 11-48 teeth, 10 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm- XS/S/M/L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise
Headset
MERIDA 8254
Seat
Saddle
MERIDA EXPERT TK II, V-mount
Seatpost
JD SP79, 30.9 mm diameter, 15 mm setback, 40 mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.657 mm | 1.597 mm | 1.552 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 656 mm | 661 mm | 666 mm | 675 mm |
| Reach | 385 mm | 399 mm | 417 mm | 435 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1129 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 403 mm | 403 mm | 402 mm | 402 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

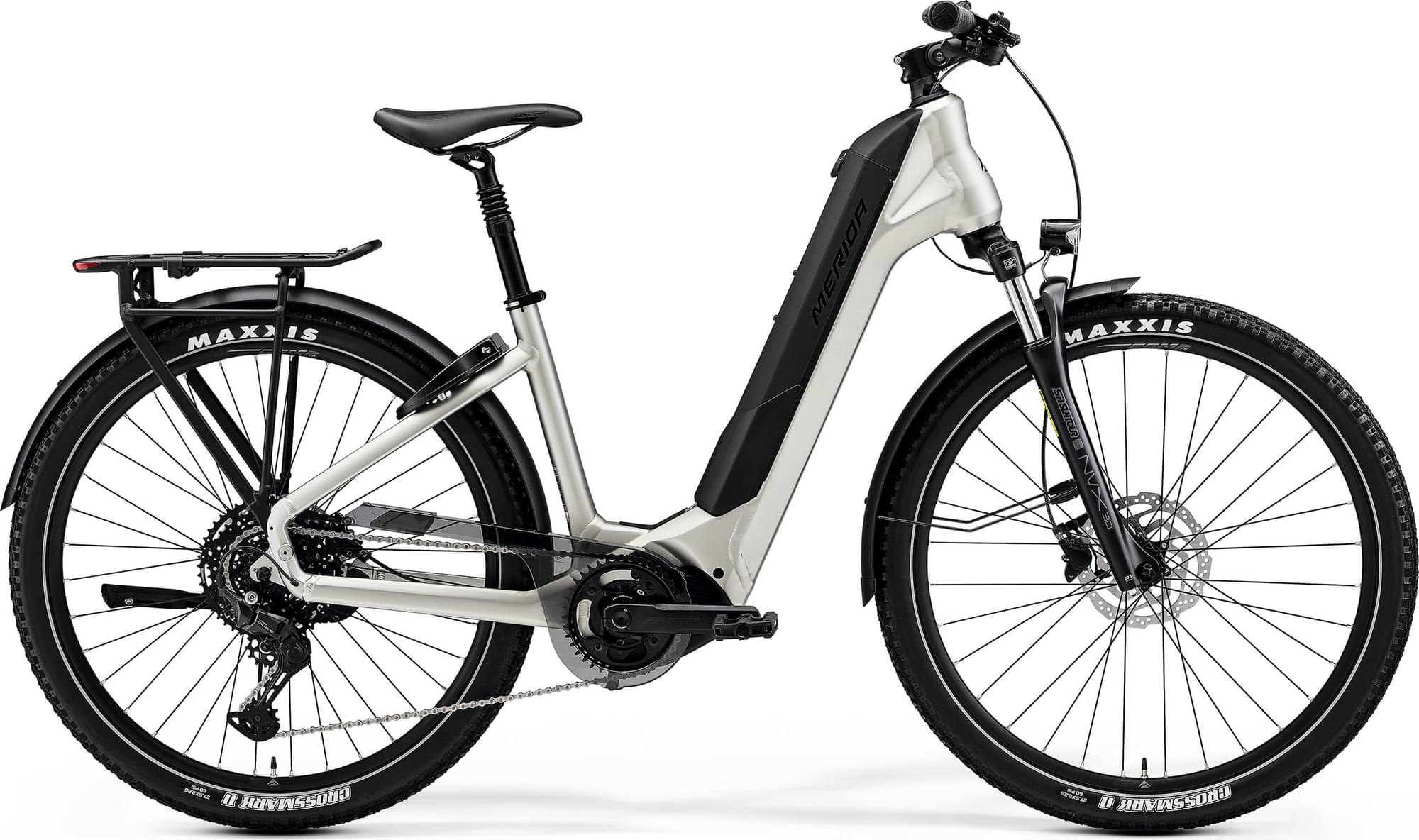

eSPRESSO CC 575 EQ completes the Merida E Espresso model. Merida launched 204 e-bikes of this model so far. You can easily view all of the Merida E Espresso e-bikes models from 2024, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
eSPRESSO CC 575 EQ components
Fork
This e-bike has the Suntour NVX fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on eSPRESSO CC 575 EQ are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
