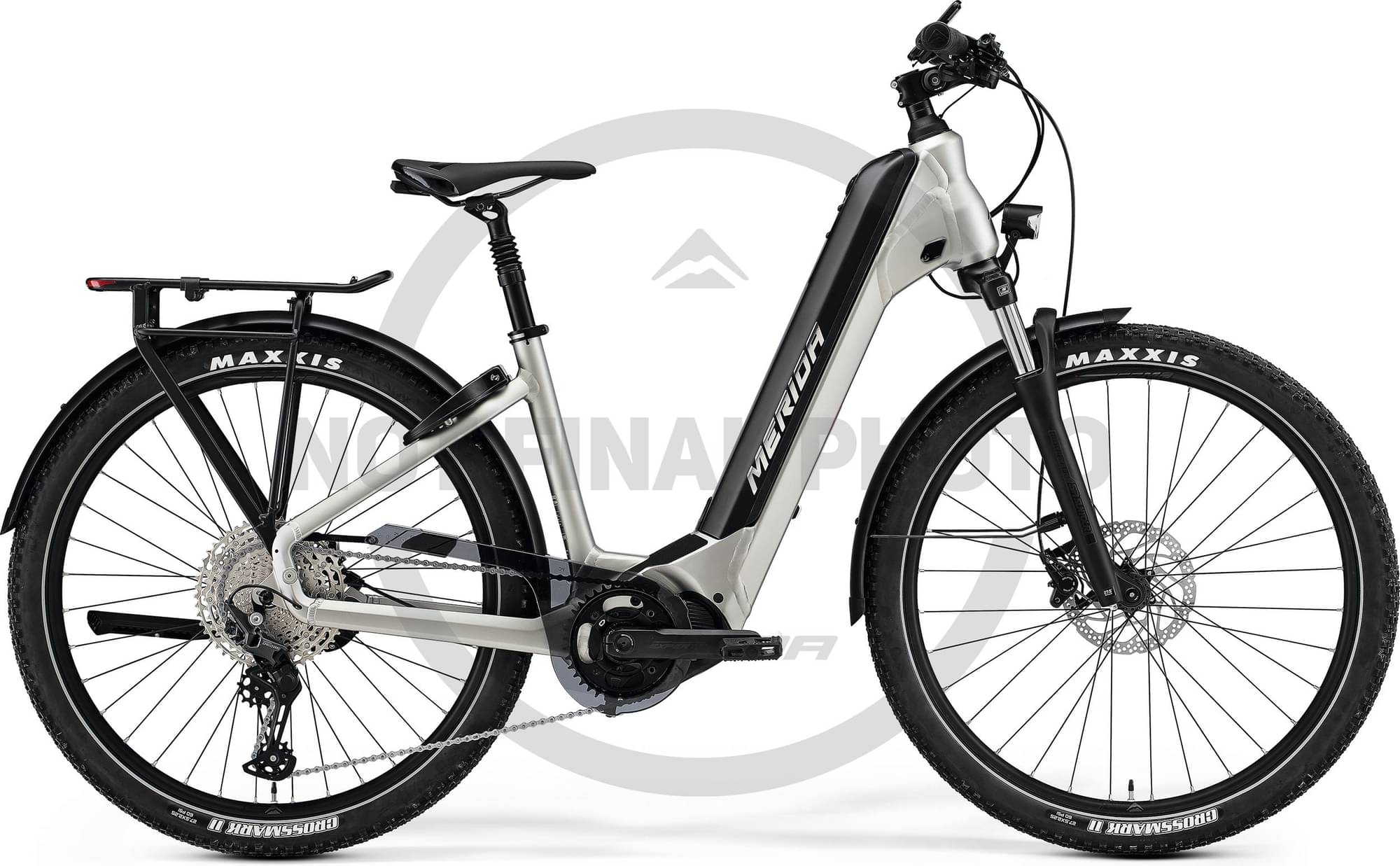

Merida eSPRESSO CC 675 EQ 2022
2022 E-bike
Estimate price |
5,353$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, MUK 5 Hanger
Suspension Fork
SR Suntour Mobie A32, Coil, 75mm suspension travel, lockout, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5100, SGS
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Chain Guide
Sunnywheel SW-CG-173A
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT402-3A, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 180 mm
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm- XS/S/M, 110 mm- L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.66 mm | 1.6 mm | 1.56 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 653 mm | 658 mm | 663 mm | 672 mm |
| Reach | 382 mm | 396 mm | 414 mm | 432 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1126 mm | 1146 mm | 1167 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 400 mm | 400 mm | 399 mm | 399 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
eSPRESSO CC 675 EQ is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Merida eSPRESSO 300 SE EQ 2022 is the cheapest e-bike model and costs 2483$. Merida eSPRESSO CC 675 EQ 2022 is the most expensive one and costs 4866$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4866$. Comparing this to the average Hybrid e-bike price, we see that the price is 96.21% more expensive.
eSPRESSO CC 675 EQ components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the eSPRESSO CC 675 EQ e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO CC 675 EQ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
eSPRESSO CC 675 EQ comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
