Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE III, material: aluminium, 27,5x2,25" max. wheelsize, 135x9 mm axle standard, internal
Suspension Fork
SR Suntour MOBIE A32, Coil, 75 mm suspension travel, lockout, 27,5x2,4" max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG400, 11-50 teeth, 11 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TC500 / Shimano QC300, 100x15 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TC500 / Shimano QC300, 100x15 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT410-3A, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm- XS/S/M/L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise
Headset
MERIDA 8253
Seat
Saddle
MERIDA EXPERT TK II, V-mount
Seatpost
JD SP79, 30.9 mm diameter, 15 mm setback, 40 mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.704 mm | 1.657 mm | 1.597 mm | 1.552 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 656 mm | 661 mm | 666 mm | 675 mm |
| Reach | 385 mm | 399 mm | 417 mm | 435 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1129 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 403 mm | 403 mm | 402 mm | 402 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

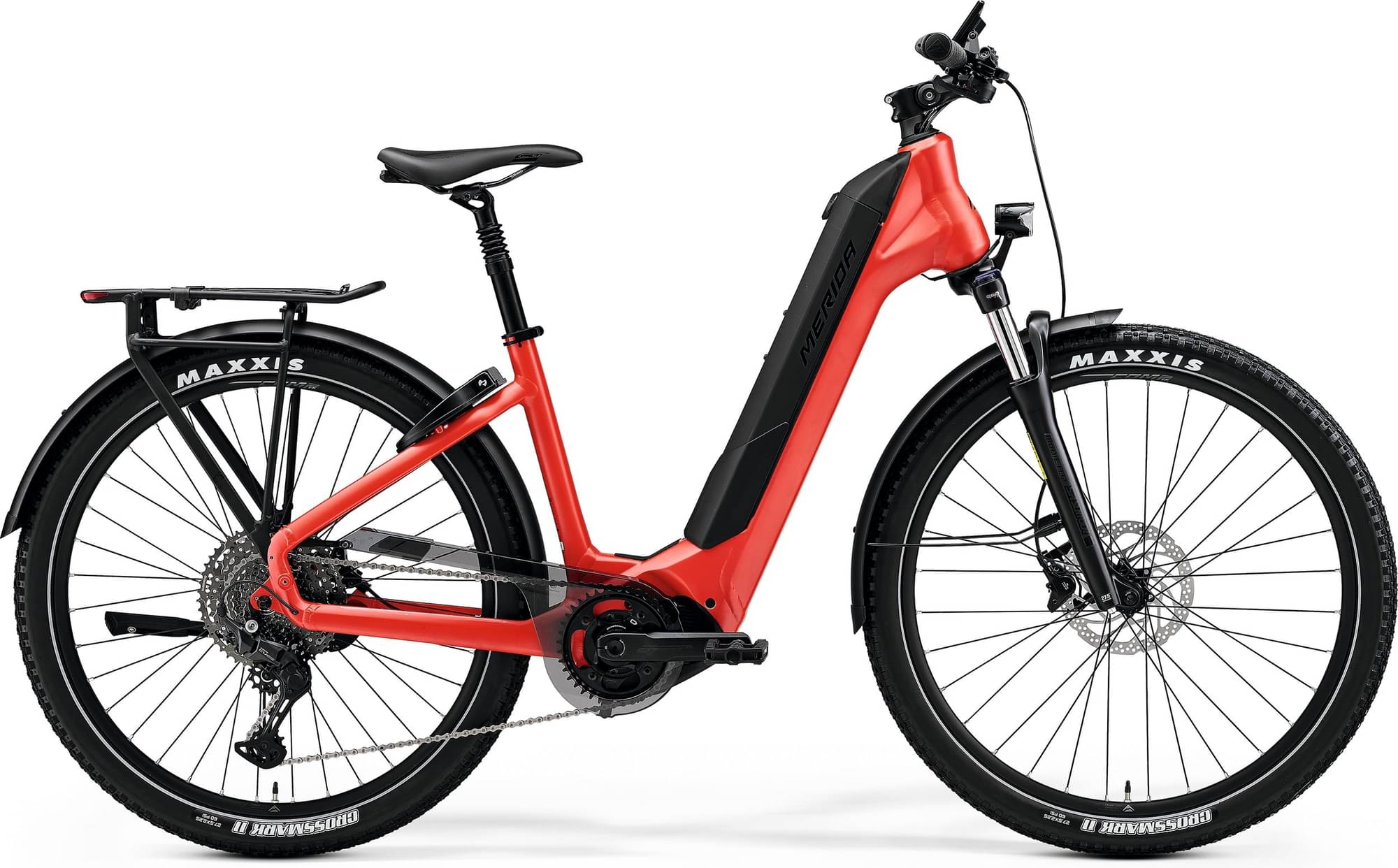

eSPRESSO CC 675 EQ completes the Merida E Espresso model. 204 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The eSPRESSO CC 675 EQ comes factory-installed with the Suntour MOBIE fork. This has a travel range of 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the eSPRESSO CC 675 EQ model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO CC 675 EQ has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
