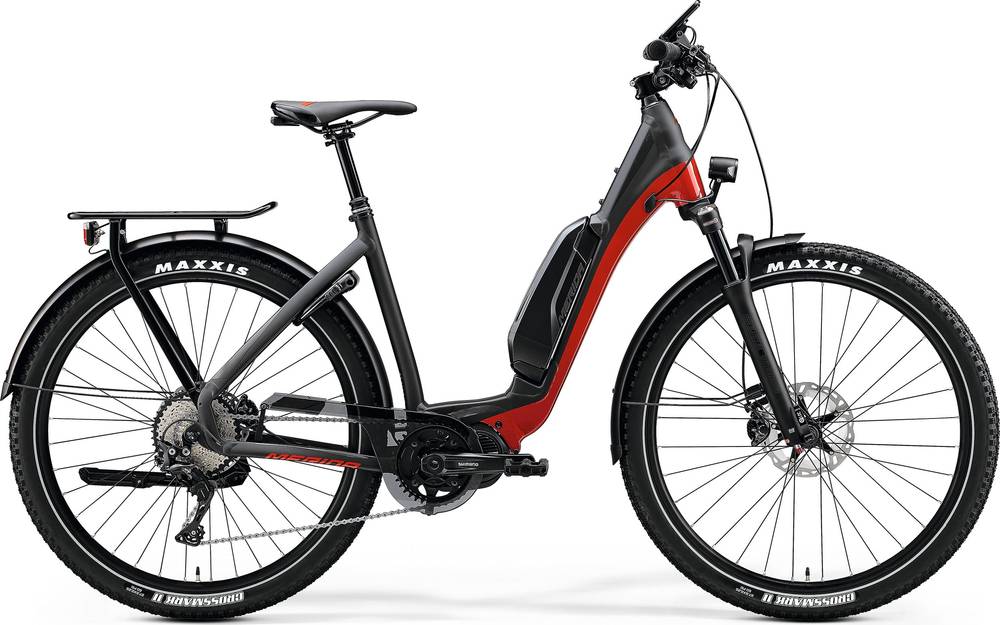

Merida eSPRESSO CC 900 EQ 2020
2020 E-bike
Weight | 23.24 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 75mm -
Fork SunTour MOBIE
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE 650, material: aluminium, 700C wheelsize, 135x9mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour MOBIE25-AIR LOR DS, Air, 75mm suspension travel, lockout
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Shift Levers
Shimano XT
Cassette
Shimano M7000, 11-42 teeth, 11 speed
Crank
Shimano CRE80, 38 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
KMC e11S
Wheels
Front Hub
Shimano XT, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano XT, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano XT, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
FSA NO.55E neck
Seat
Saddle
MERIDA EXPERT TK, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM TK, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 120mm travel seatpost, S/M 40mm seatpost suspension travel - L 50mm seatpost suspension travel
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.65 mm | 1.64 mm | 1.64 mm |
| Front Center | 674 mm | 693 mm | 712 mm | 712 mm |
| Rake | 43 mm | 44 mm | 43 mm | 44 mm |
| Trail | 84 mm | 83 mm | 84 mm | 83 mm |
| Stack | 638 mm | 657 mm | 676 mm | 675.5 mm |
| Reach | 388 mm | 399 mm | 411 mm | 411 mm |
| Top Tube Length | 584 mm | 601 mm | 619 mm | 619 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 170 mm | 190 mm | 210 mm | 210 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1110 mm | 1129 mm | 1148 mm | 1148 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 468 mm | 461 mm | 457 mm | mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
eSPRESSO CC 900 EQ is part of the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. Take a sneak peek at all Merida E Espresso e-bikes models from 2020, by clicking here.
Model range prices
Merida eSPRESSO 200 SE 2020 is the most affordable e-bike of this model and has a price of 2433$. On the other hand, Merida eSPRESSO 700 EQ 2020, is the most expensive and costs 4014$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida eSPRESSO CC 900 EQ it’s weighing 23.24 kg (51.24 lbs). At this weight, is slightly lighter than average. To sum up, it’s 2.37% lighter than the average weight of Hybrid e-bikes.
Overview of components
Fork
The SunTour MOBIE is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the eSPRESSO CC 900 EQ e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO CC 900 EQ has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
eSPRESSO CC 900 EQ comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
