Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6001 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY E6000
Suspension Fork
Suntour NEX-PM-DS
Drivetrain
Rear Derailleur
Shimano Altus RDM2000
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano HG300, 9 speed, 12-36 teeth
Crank
Shimano CRE60 38
Chain
KMC X9
Wheels
Front Hub
Shimano TX505 centrelock
Rear Hub
Shimano TX505 centrelock
Rims
MERIDA 7 Comp CR
Spokes
Black stainless
Tires
Continental Ride Tour 42c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
JD-TR25A 640 R35mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA COMFORT
Seatpost
Suspension One D 30.9mm
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E6001 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.62 mm | 1.61 mm | 1.6 mm |
| Front Center | 667 mm | 676 mm | 698 mm | 719 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm |
| Trail | 81 mm | 84 mm | 82 mm | 82 mm |
| Stack | 649 mm | 650 | 668 mm | 687 mm |
| Reach | 391 mm | 401 mm | 416 mm | 430 mm |
| Top Tube Length | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1120 mm | 1129 mm | 1151 mm | 1172 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

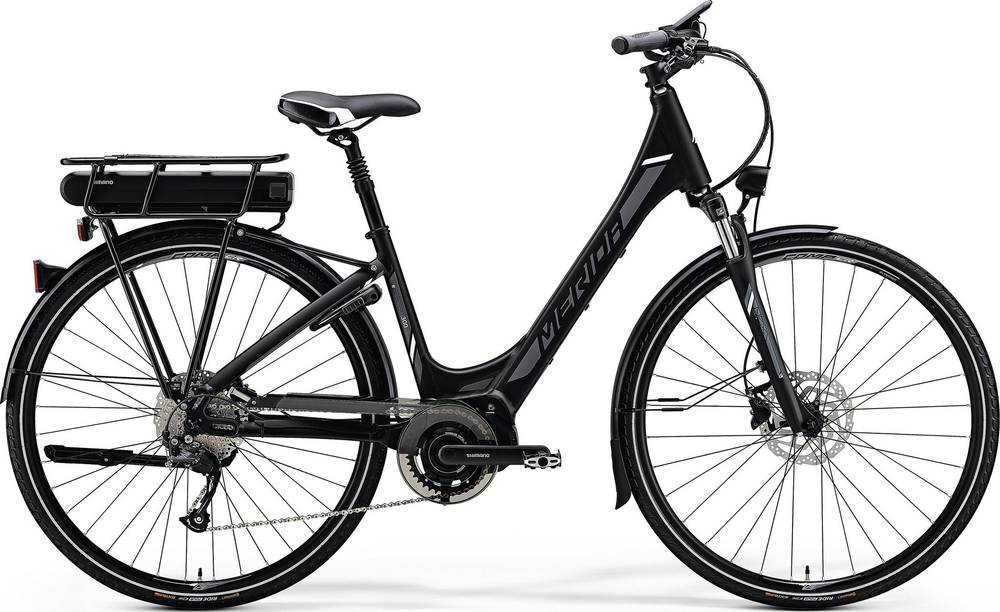

Model Overview
eSPRESSO CITY 300 EQ completes the Merida E Espresso model. Merida released 185 e-bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
Merida eSPRESSO CITY 300 EQ 2018 e-bike is equipped with the SunTour NEX fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The eSPRESSO CITY 300 EQ 2018 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO CITY 300 EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
