Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, Alivio -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6001 500Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY (STePS)
Suspension Fork
Suntour NEX-D-DS-700C 50
Drivetrain
Rear Derailleur
Shimano Deore-9
Shift Levers
Shimano Alivio rapidfire
Cassette
Shimano Gear 21
Crank
Shimano 38 DCG
Bottom Bracket
STEPS, press-fit
Chain
KMC X9
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano M315
Brake Levers
attached
Cockpit
Handlebar
JD-TR25A 640 R35
Seat
Saddle
MERIDA COMFORT
Seatpost
Suspension One D 27.2
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6001 500Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 56cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.62 mm | 1.61 mm | 1.6 mm |
| Front Center | 667 mm | 676 mm | 698 mm | 719 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm |
| Trail | 81 mm | 84 mm | 82 mm | 82 mm |
| Stack | 649 mm | 650 | 668 mm | 687 mm |
| Reach | 391 mm | 401 mm | 416 mm | 430 mm |
| Top Tube Length | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1120 mm | 1129 mm | 1151 mm | 1172 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

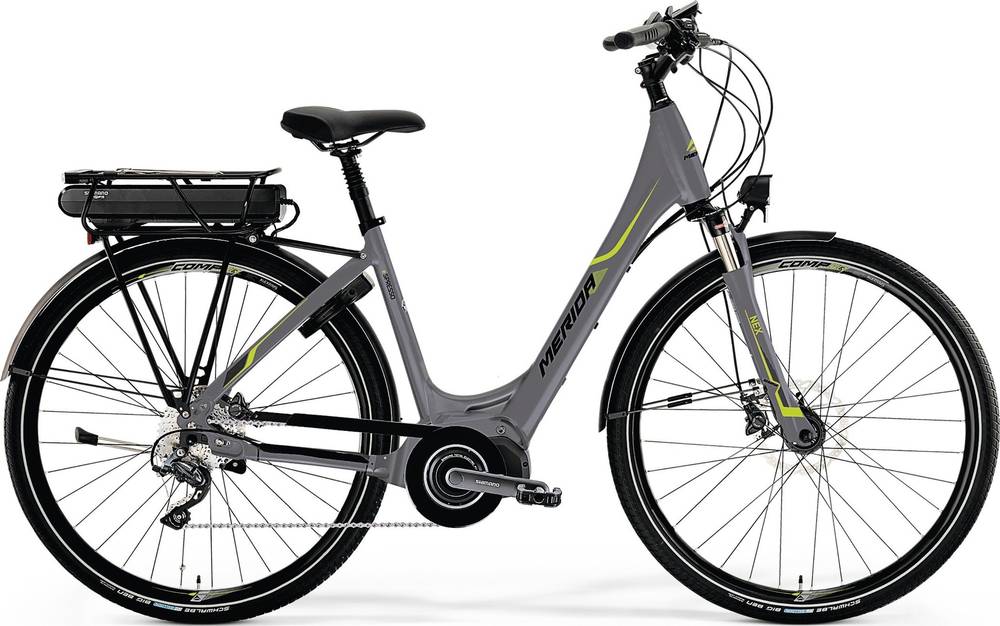

eSPRESSO CITY 600 EQ is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. Take a sneak peek at all Merida E Espresso e-bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
eSPRESSO CITY 600 EQ components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The eSPRESSO CITY 600 EQ 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
